+ Frontman: The visual Eurorack module that halts the scroll and powers your music

Summary

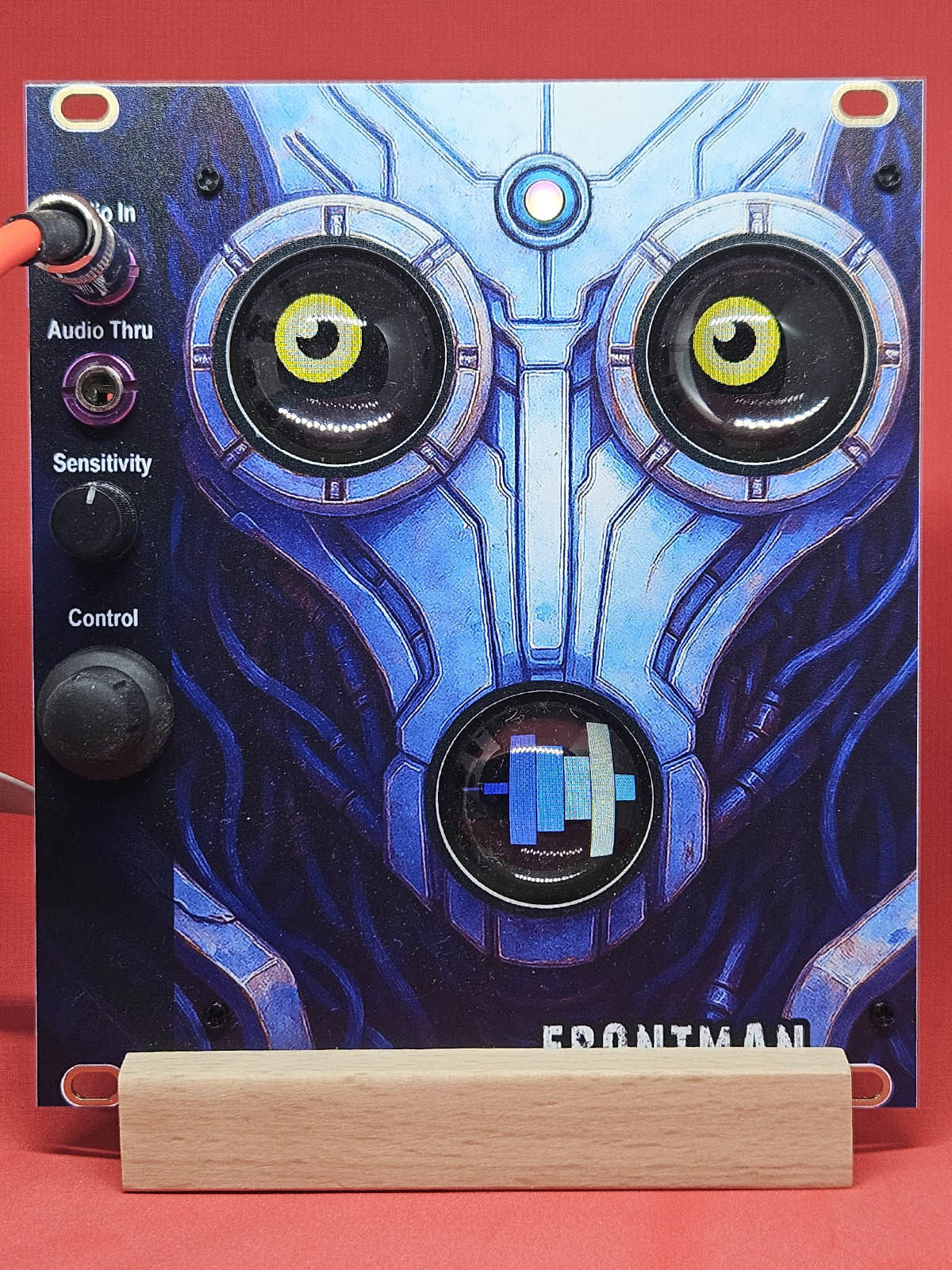

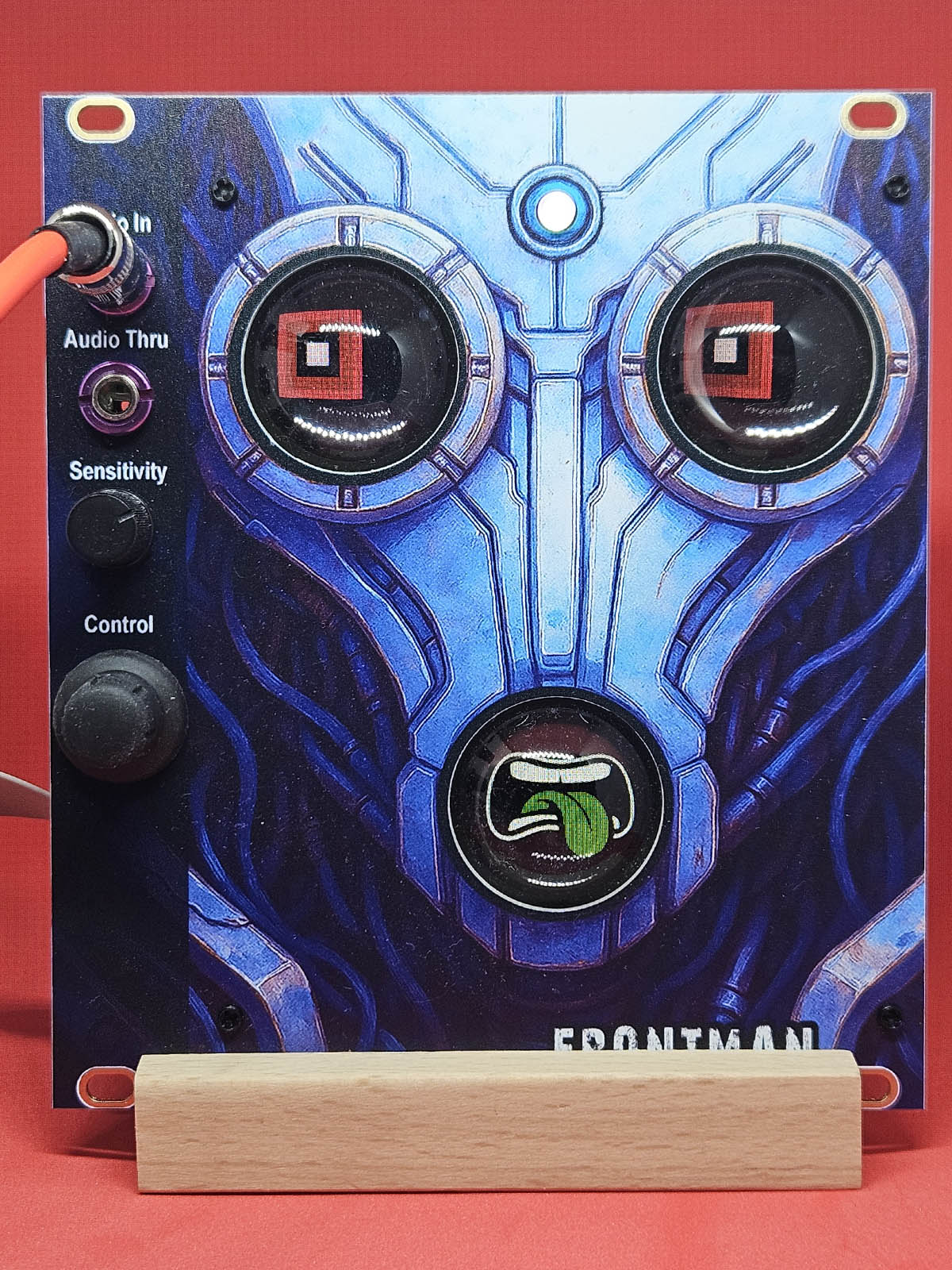

Frontman is a striking Eurorack visual module built to help your music stand out on social media.

Humans are naturally visual creatures—our brains process images faster than text, making compelling visuals crucial to catching attention. Frontman draws viewers in, increasing the likelihood they'll pause scrolling, explore your setup, and actually listen to your music.

The Frontman Module on GitHub

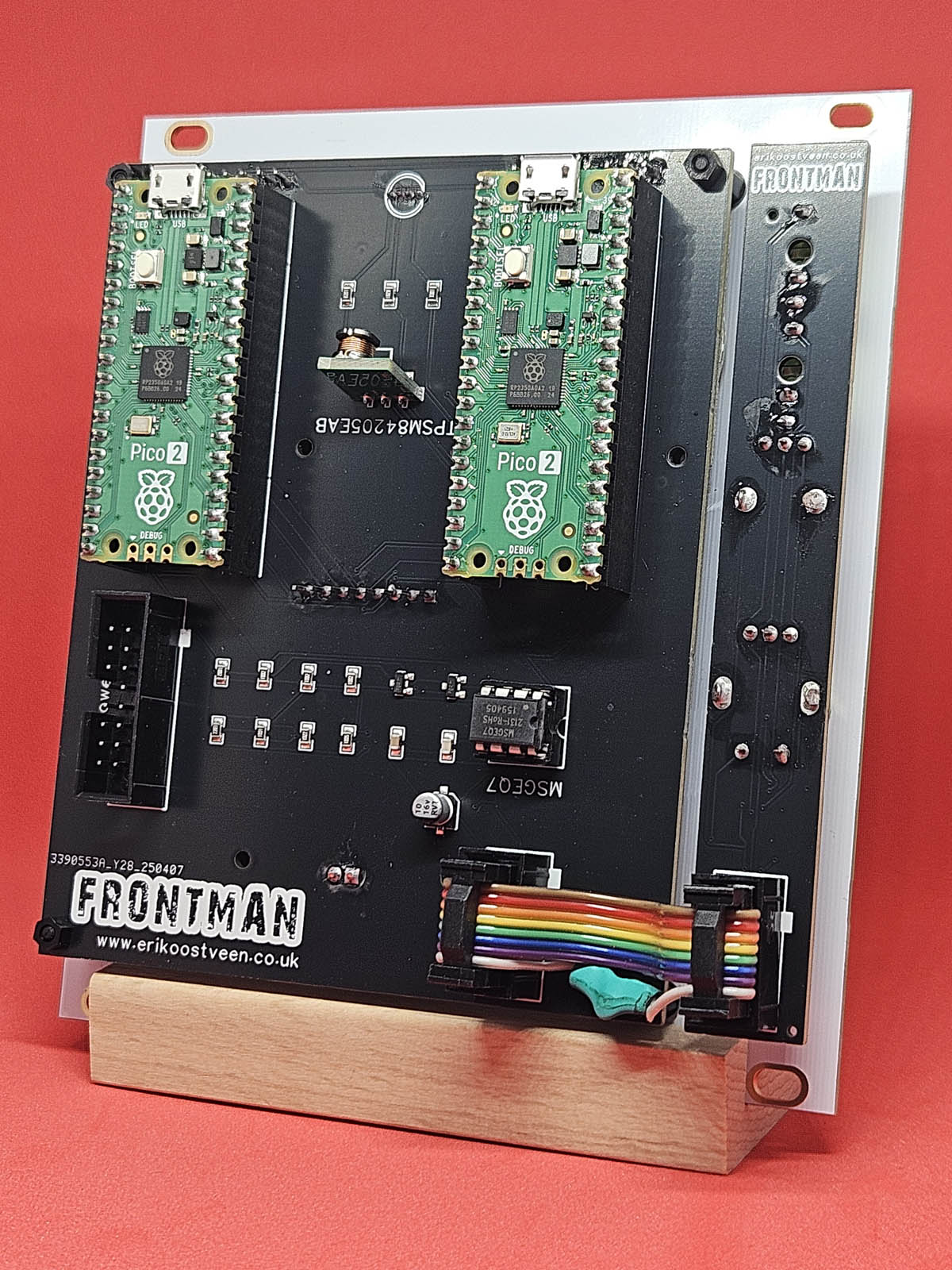

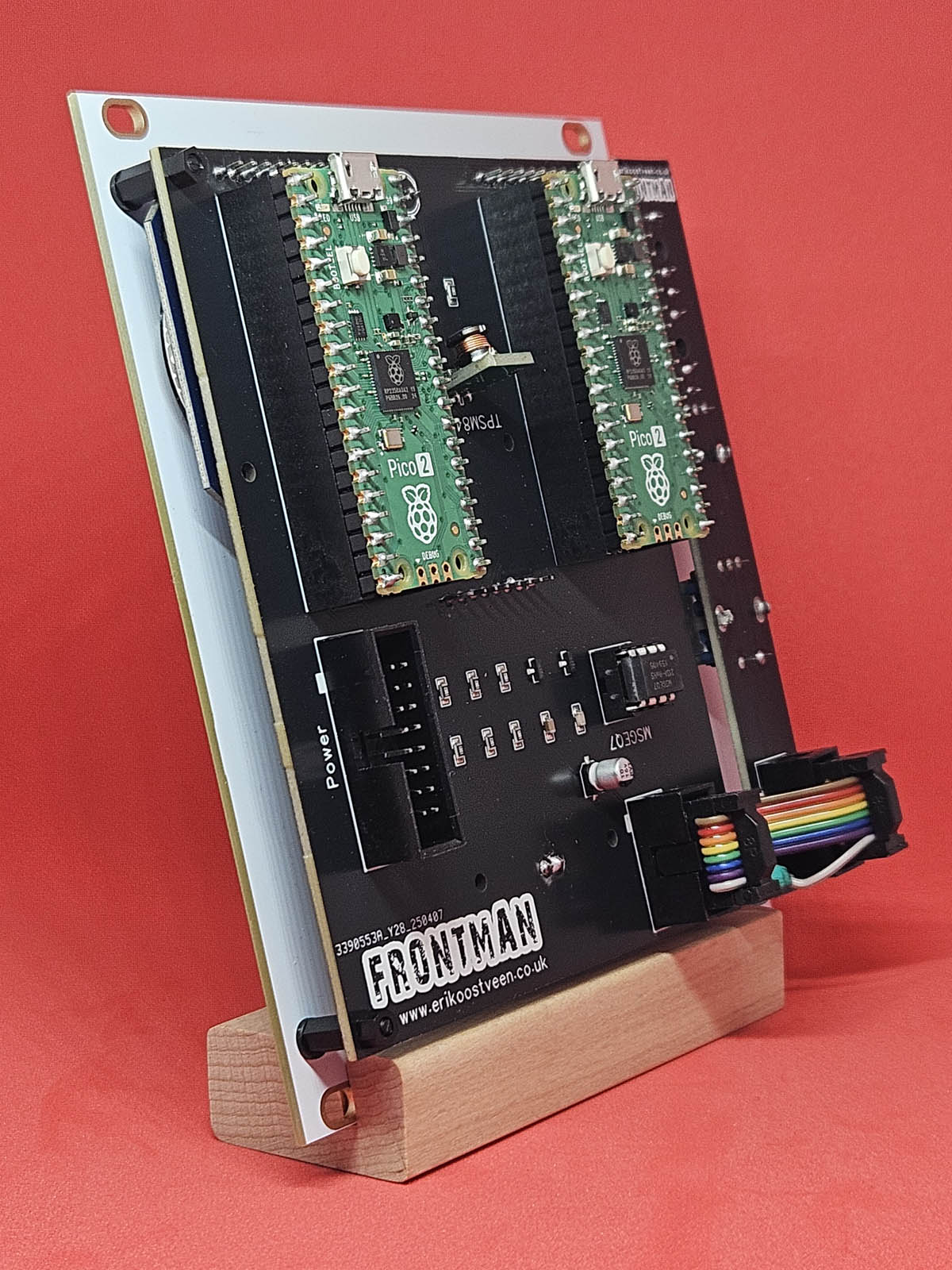

Fancy building the Frontman Module yourself? - then please visit the Frontman GitHub project page.

Specs

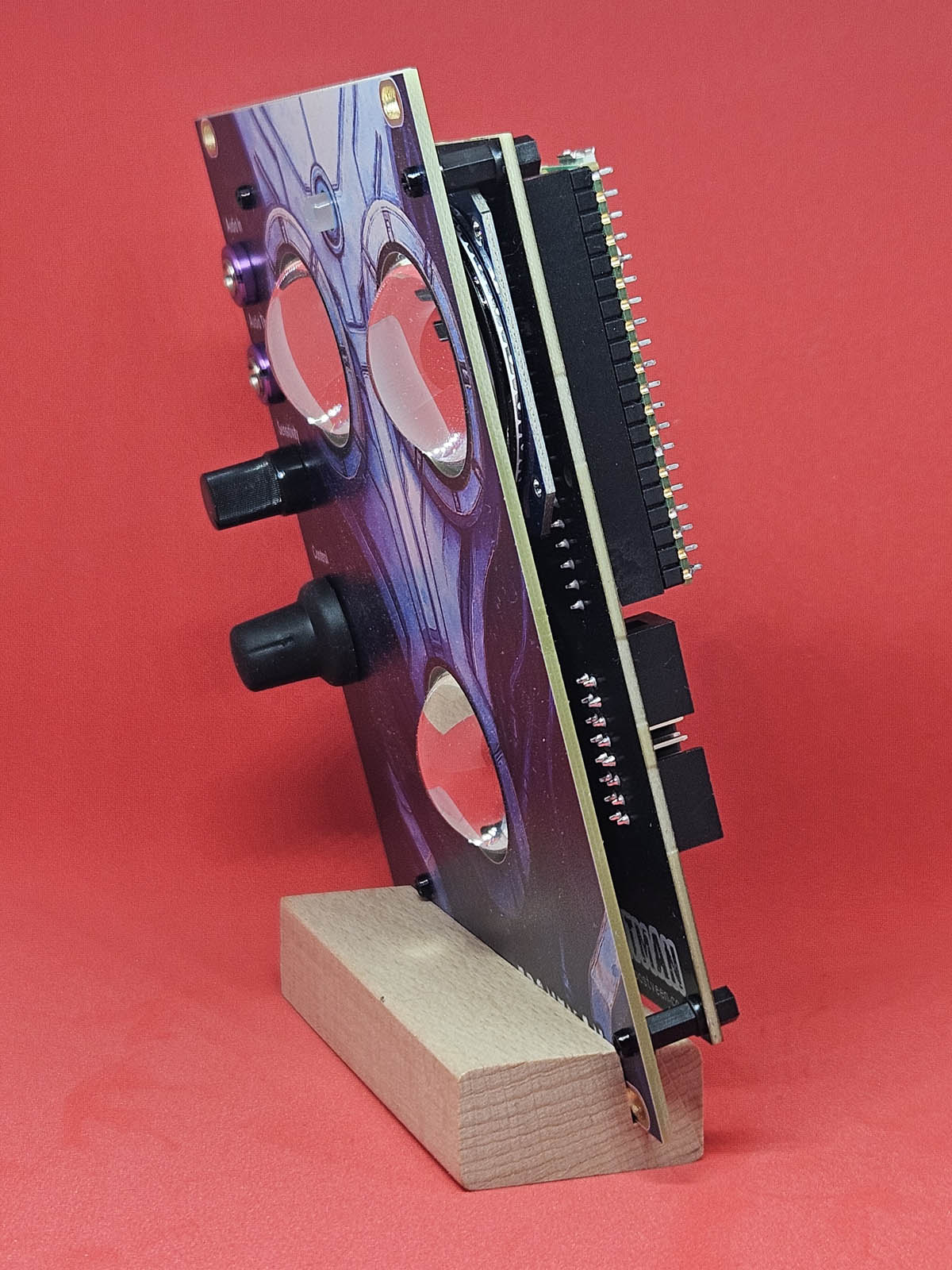

• 3U/22HP = approx. H129mm x W110mm
• Depth approx. 35mm
• +12V = 100mA, -12V = 0mA, +5V = 0mA
• Stereo Audio IN > Audio Thru (Mono processing internally)
• Rotary Encoder control (turn and press)

Demos

A handful of Frontman demos.

Front Panel

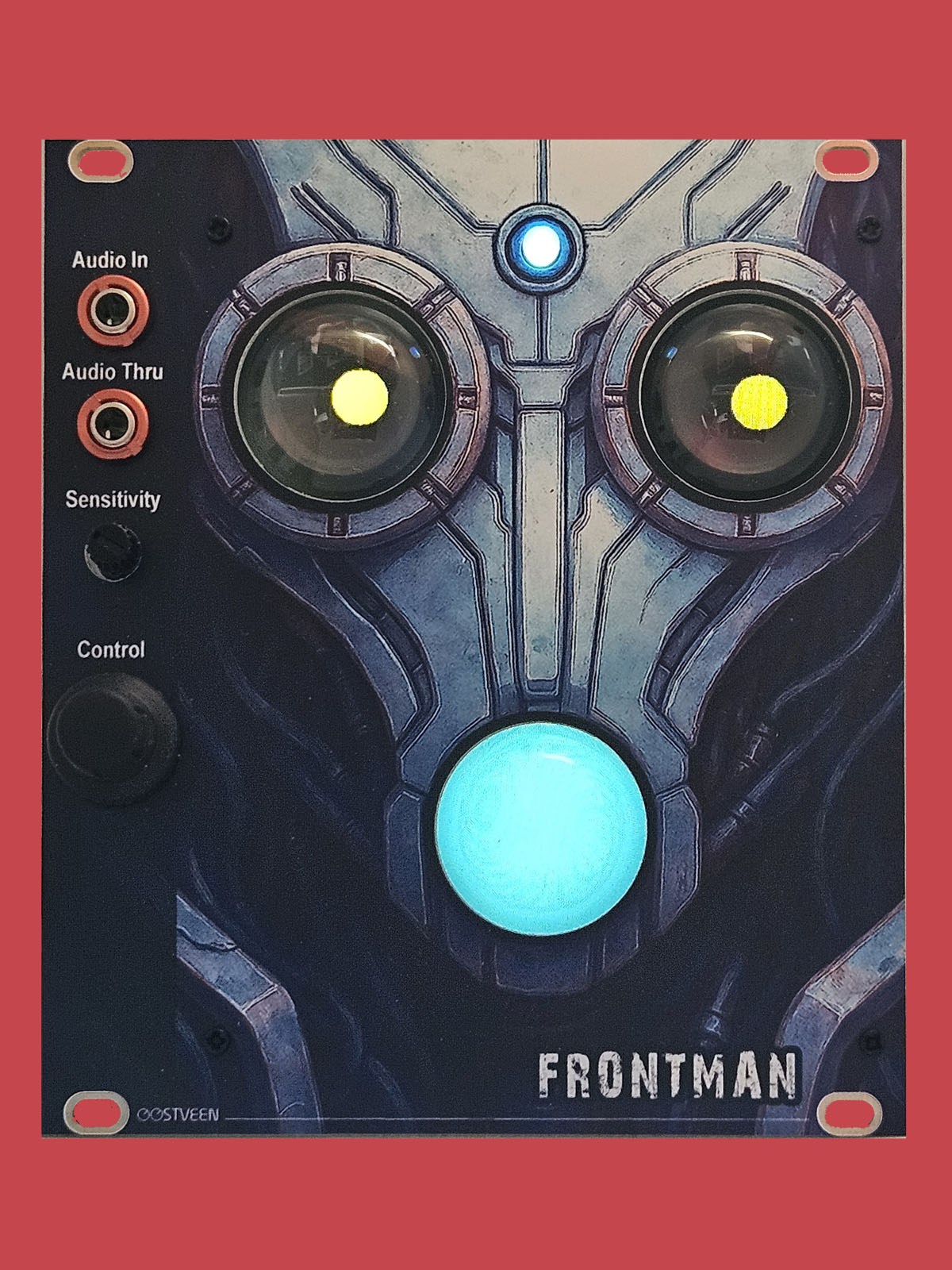

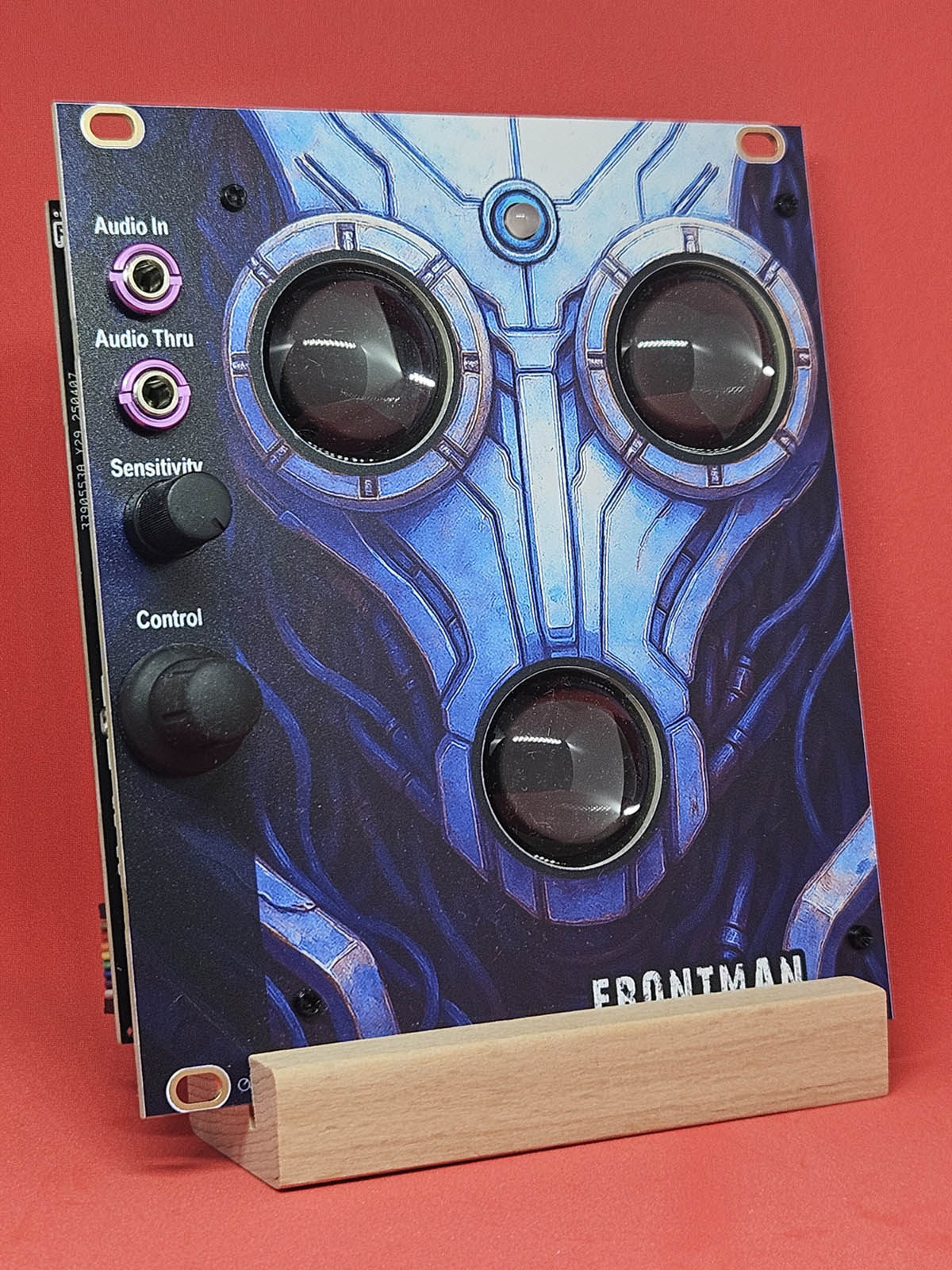

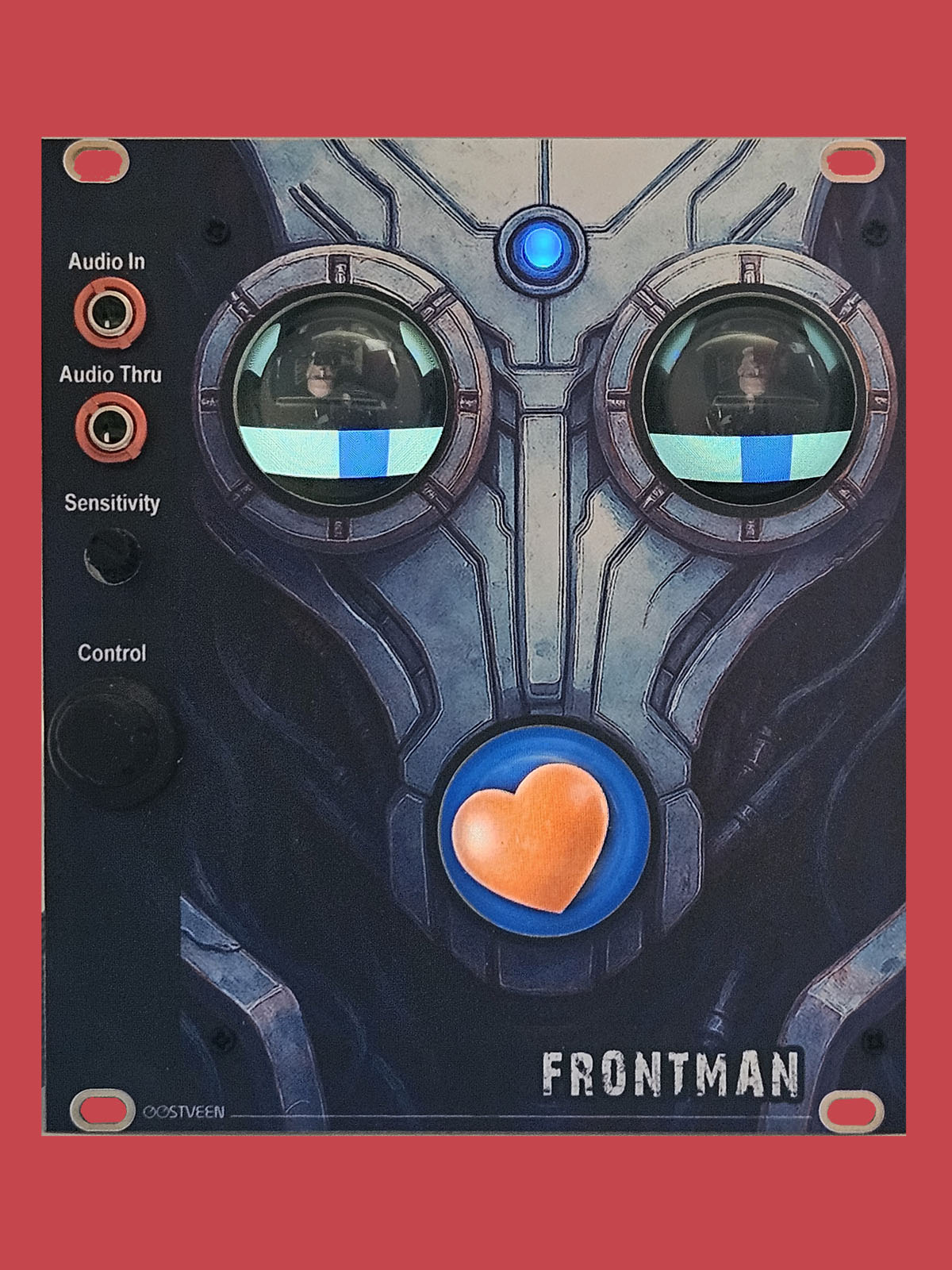

The image below is showing the Frontman's front panel.

1. Audio In & Audio Thru
   Connect the 3.5mm Input jack to the Output of an external Audio device (mono or stereo). You can use the Audio thru to pass the signal on to the input of an other audio device (mixing console for example).
2. Sensitivity
   Use the Sensitivity dail to set the input level of the module's onboard audio scpectrum analyser. The module shows audio visualisations in its mouth-display (#5).
3. Control
   Turn to rotary encoder to select any of the 25 colour schemes. Press the encoder to select a random eyes & mouth combination.
4. Eyes
   2 x 1.28-inch (240x240px) GC9A01 TFT LCD displays.
5. Mouth
   1 x 1.28-inch (240x240px) GC9A01 TFT LCD display.
6. Tri colour LED
   This LED generates a new random light pattern every time the encoder is pressed.
