Introducing Steam Modular
Introducing STEAM Modular – your ticket to the world of electronics in the popular EuroRack small format! These modules aren't just gadgets – they're your key to unlocking the power of Science, Technology, Engineering, Arts, and Mathematics (STEAM) in the coolest way possible!
Forget boring old electronics – STEAM Modules are here to shake things up. Based on your favourite programming and circuit prototyping boards like Arduino, Raspberry Pi, and Unihiker, these modules are like building blocks for your wildest inventions.
But here's where it gets really exciting: with STEAM Modules, you're the master of your creation. Thanks to their smart design, you can tweak, twist, and tinker with the I/O Pins to add, remove, or change features.
That means you can turn a module into your very own STEAM masterpiece!
Feeling extra adventurous? Mix and match different STEAM Modules or throw in some third-party ones to create something truly unique.
Picture it: your own custom STEAM setup, all neatly packed in a standard EuroRack case. Take it with you wherever you go and watch jaws drop as you showcase your creativity and brainpower.
And hey, here's a fun fact: these skills – creativity, analytical thinking – they're the stuff future employers are looking for. So, why wait? Embark on your inventure today with STEAM Modular and let the fun begin!
EuroRack Format & Modules explained
Ever heard of Eurorack? It's like the LEGO of music synths but way cooler - created by Doepfer Musikelektronik back in 1995. Eurorack has been taking the music world by storm ever since!
Think of it as your musical playground where you can mix and match all sorts of cool stuff like oscillators, filters, amplifiers, and even funky effect processors.
The best part? It's not just about music – with STEAM Modules you can dive into the world of LED lights, relays, servo/stepper motors, video, temperature/humidity sensors, and whatever else your creative heart desires!
Now, let's talk size. Eurorack modules are like puzzle pieces, standing at 128.5mm tall (that's about 5 inches) and usually referred to as 3U (that's 3 rack units). They come in different widths measured in Horizontal Pitch (HP), where 1HP equals about 5mm (or 0.2 inches). So, if you're eyeing a 3U/10HP module, it's 128.5mm tall by 50.5mm wide.

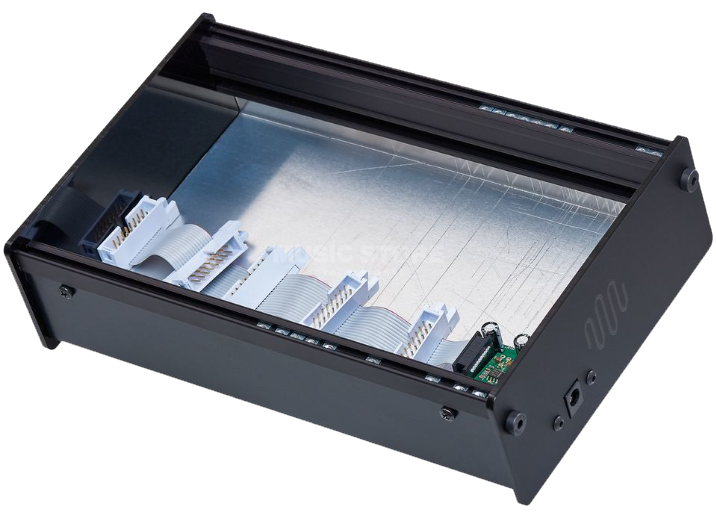

Eurorack cases (generally referred to as Modular Cases) come in all shapes, colours and sizes, just waiting for you to customize them to match your vibe.
Some have a built-in power supply to power newly purchased modules, or the power supply is a EuroRack module all by itself.
You only need one power supply to run your whole Eurorack/STEAM setup

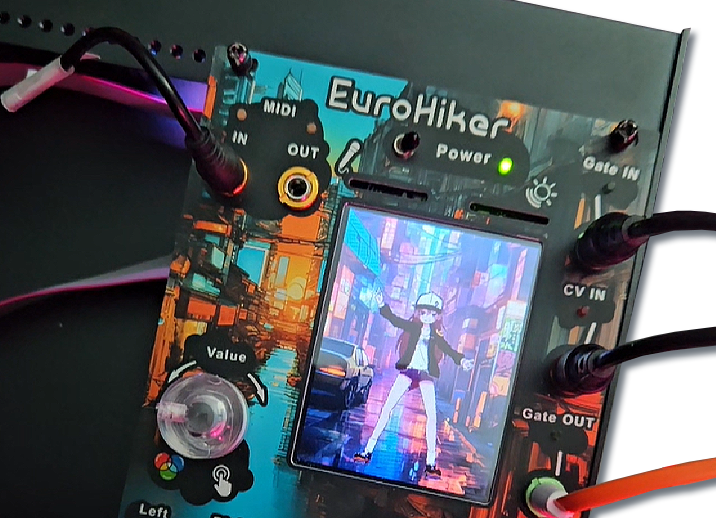

EuroHiker Module
(swipe left/right)
◦ Summary

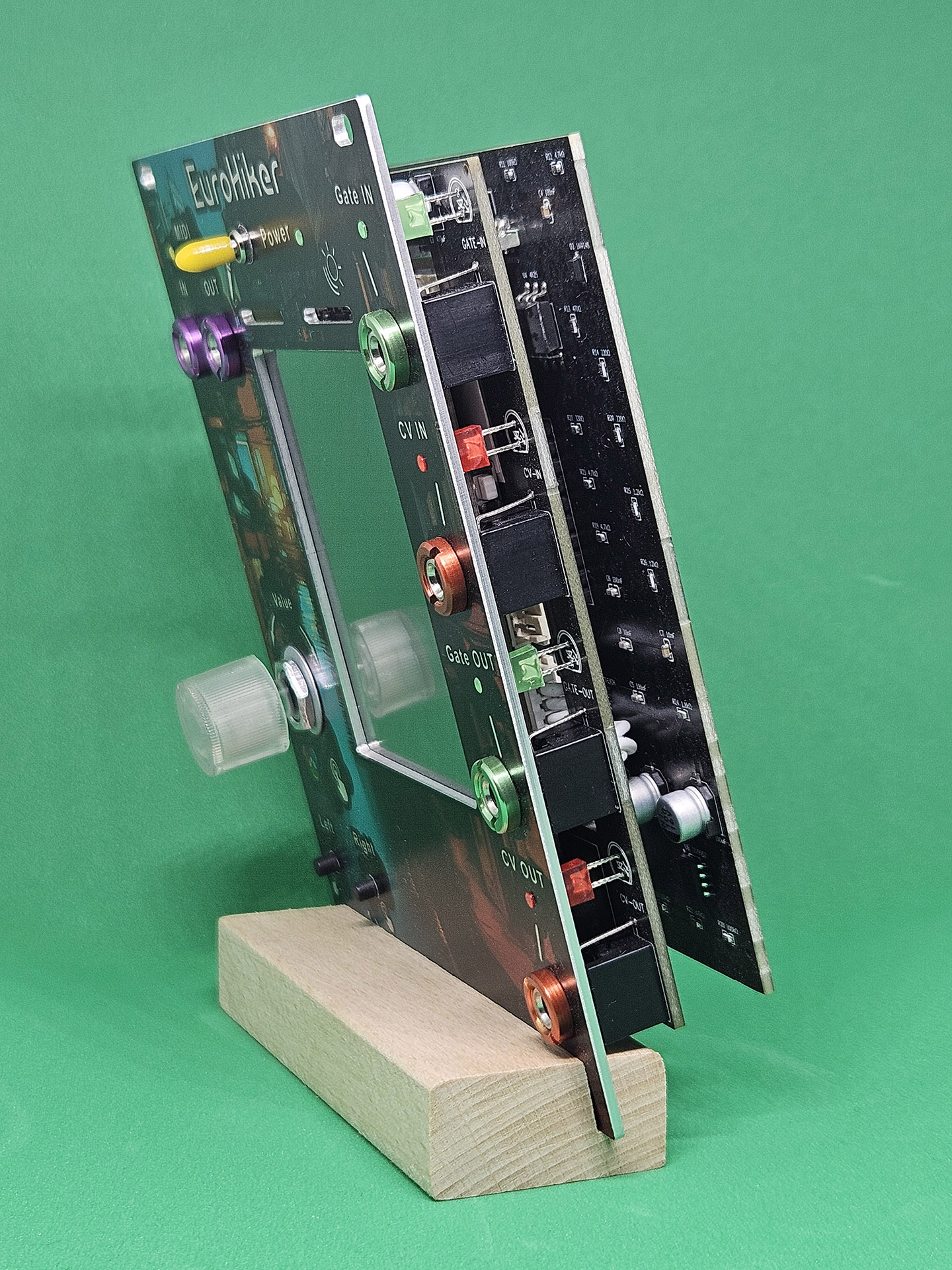

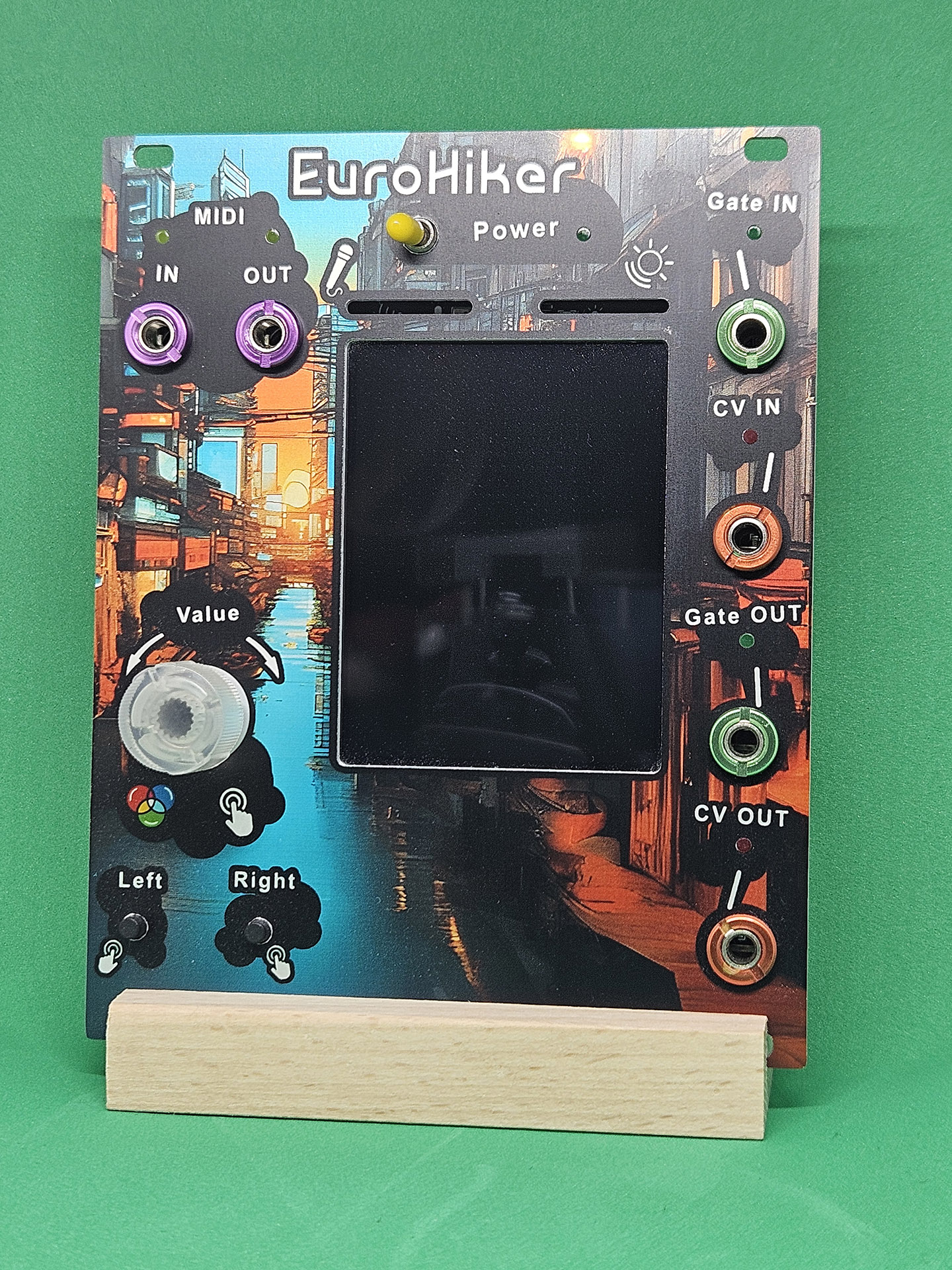

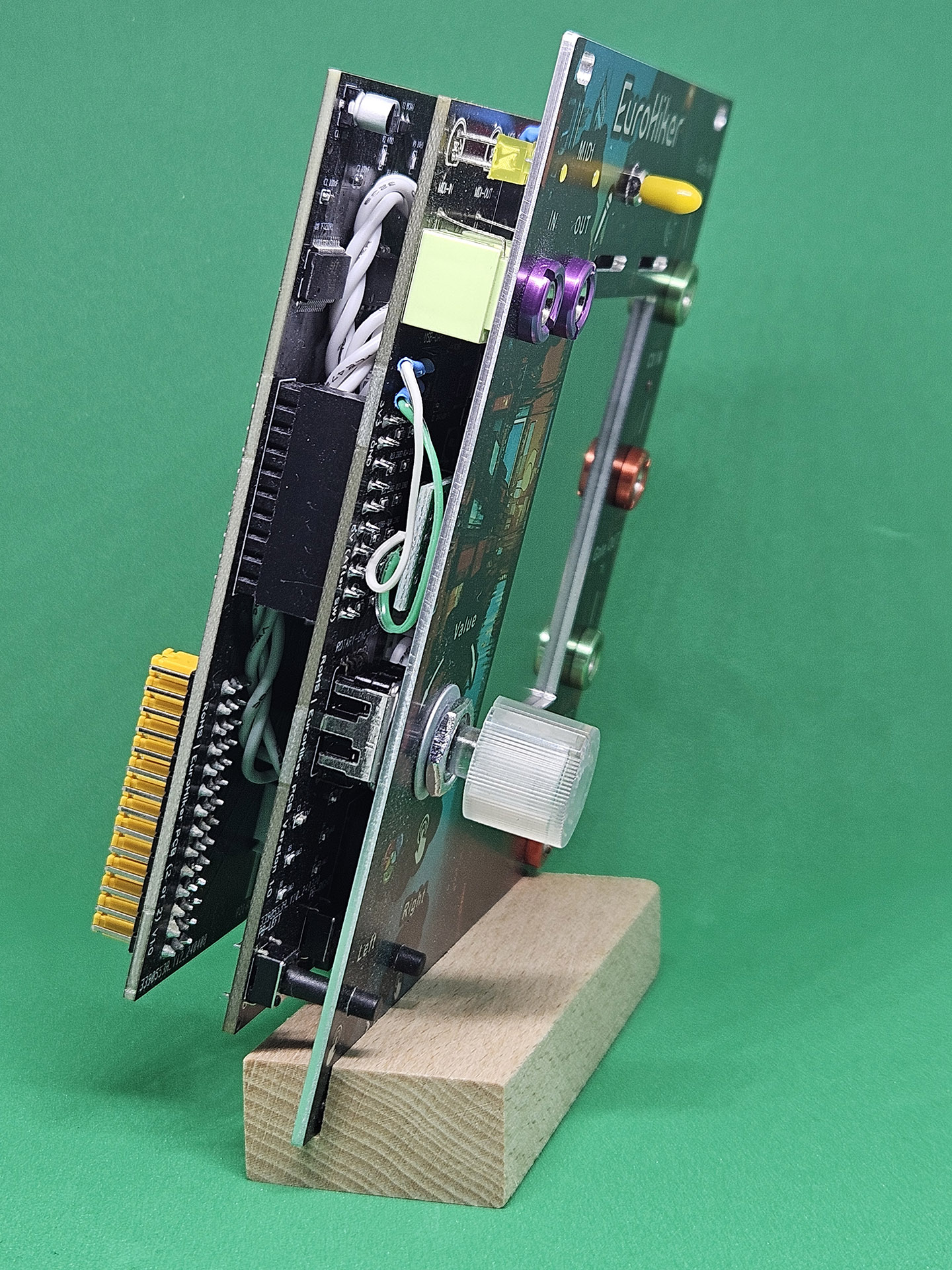

The EuroHiker module is based on the popular (Linux) Unihiker single board computer by DFRobot.
The UniHiker board comes standard with WiFi/Bluetooth, Light Sensor, Microphone, Accelerometer sensor, Gyroscope sensor, Buzzer, MicroSD card slot and Various I/O connectivity (PWM, ADC, I2C, UART, USB, SPI)

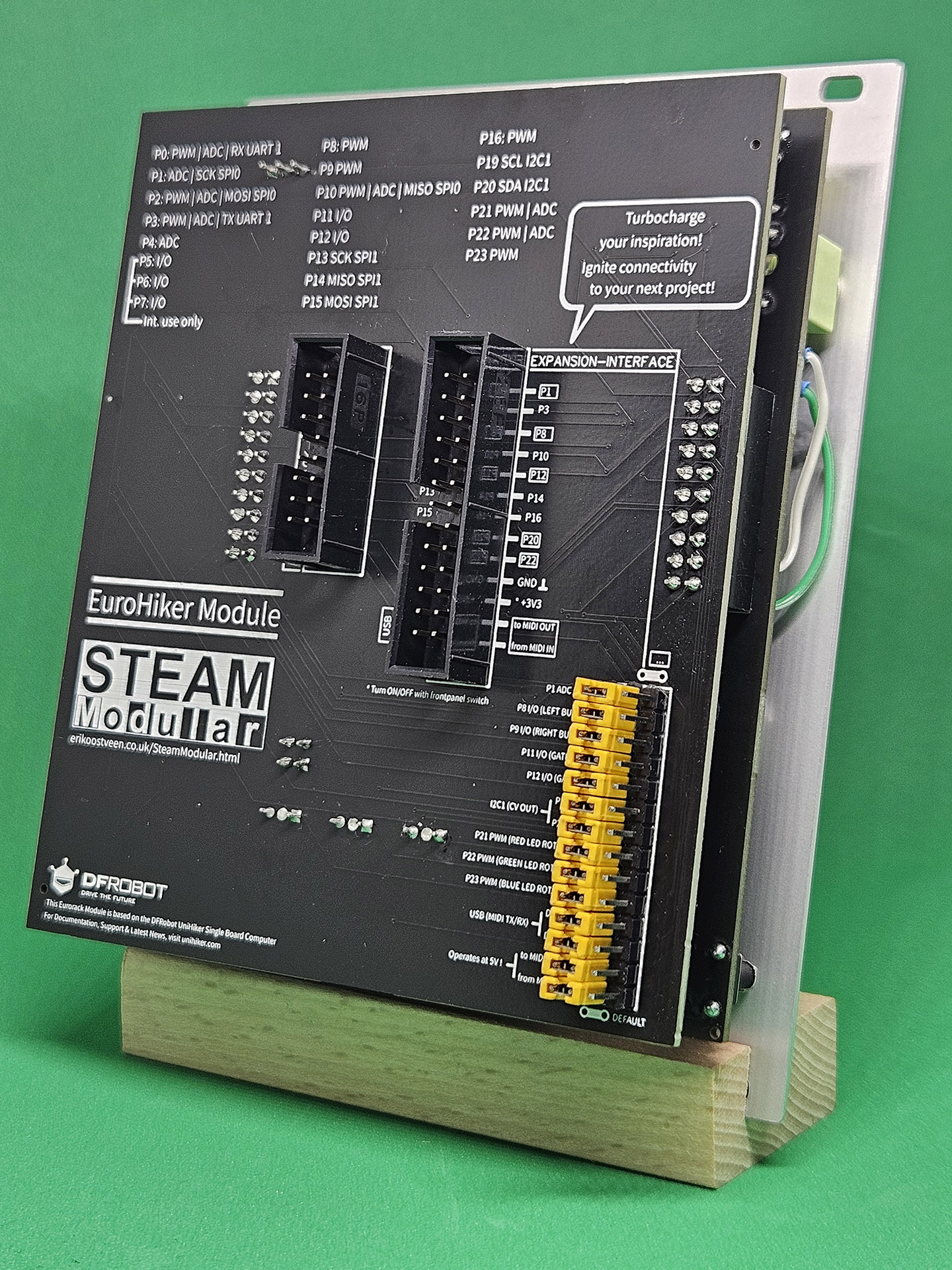

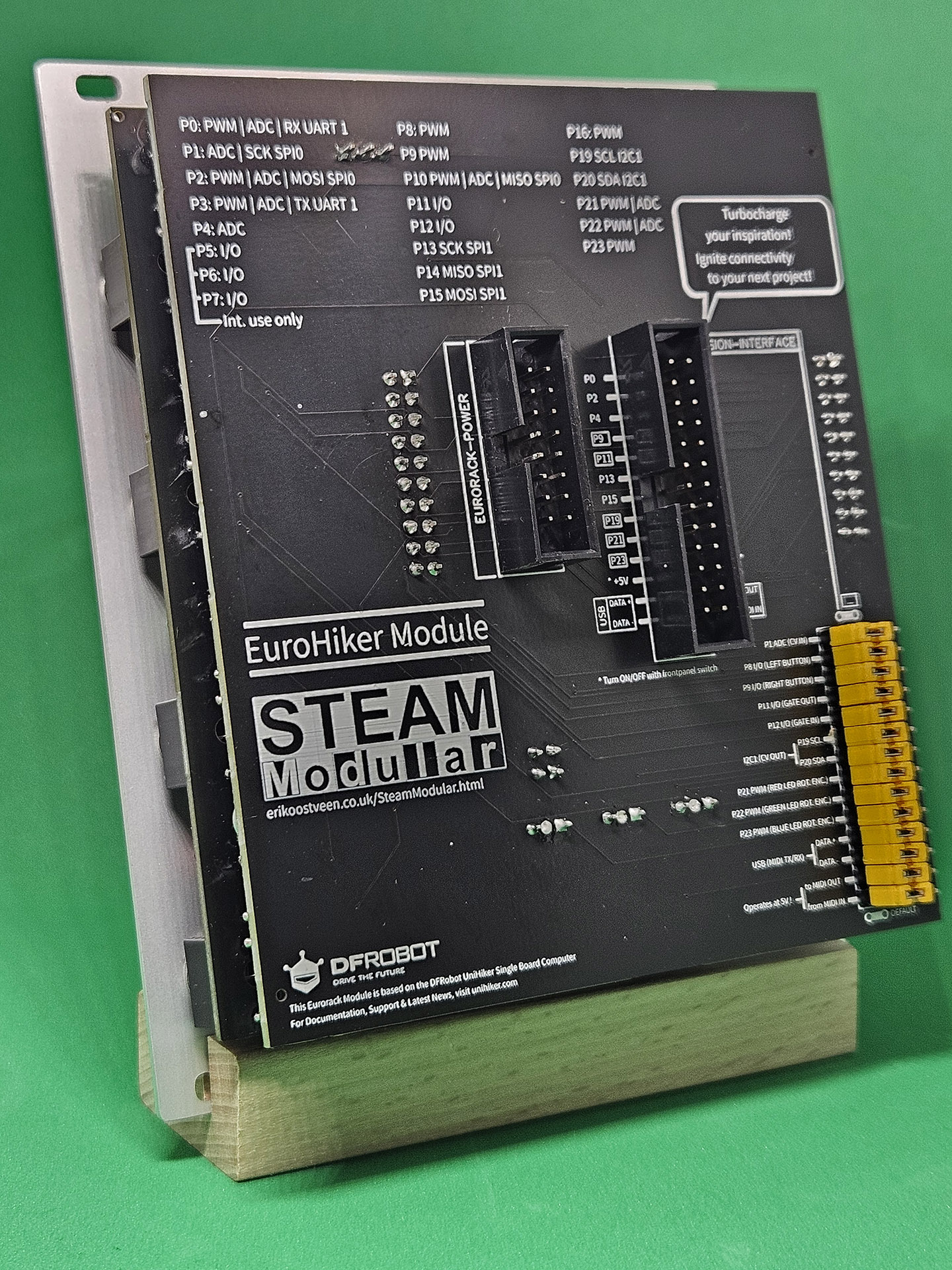

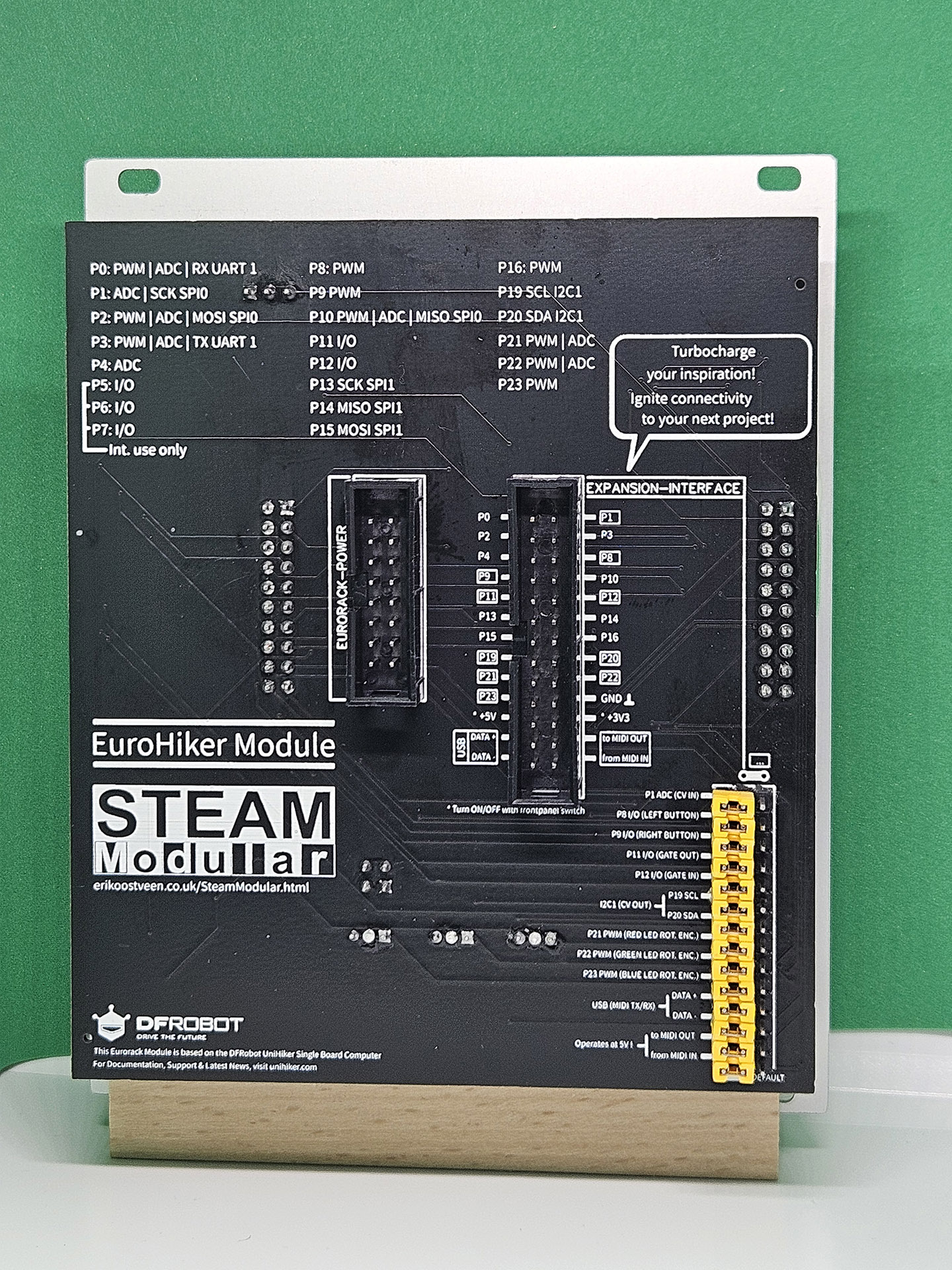

The EuroHiker module adds to this already impressive list of features MIDI IN/OUT, Gate IN/OUT, Control Voltage IN/OUT, two push buttons, a Rotary Encoder with built in Red/Green/Blue LEDs plus another push button. The module also has an ON/OFF switch - and last but not least, offers an expansion interface (26pins) for you to experiment and interact with the EuroHiker module through your own desgins!
Download the EuroHiker Visual Summary (PDF | 2Mb) here
Module Specs
• 3U/20HP = approx. H129mm x W101mm
• Depth approx. 40mm
• +12V = 600mA, -12V = 25mA, +5V = 0mA
◦ What does it do?
The EuroHiker module is designed to provide a programmable platform capable of executing various functions, fitting seamlessly into the world of EuroRack where modules are typically fine-tuned to excel in their designated tasks.
The EuroHiker module, on the other hand, empowers you to navigate through folders containing Python programs, each leveraging the module's extensive feature set.
The idea is to have the flexibility to explore numerous concepts, allowing you to test them before deciding whether to further develop them using another development board or to retain them within the EuroHiker module itself.
Let's be very clear: while the EuroHiker module seamlessly integrates into the EuroRack ecosystem, its capabilities extend far beyond driving electronic musical instruments—it can handle anything electronic, whether analog or digital!
◦ Show us!
On Instagram
Go to my Instagram feed
On YouTube
Go to the Eurohiker playlist page
◦ The EuroHiker Module on GitHub
Visit the Eurohiker GitHub repository page
DP-5Bplus (Geiger Counter) Module
(swipe left/right)
◦ Summary

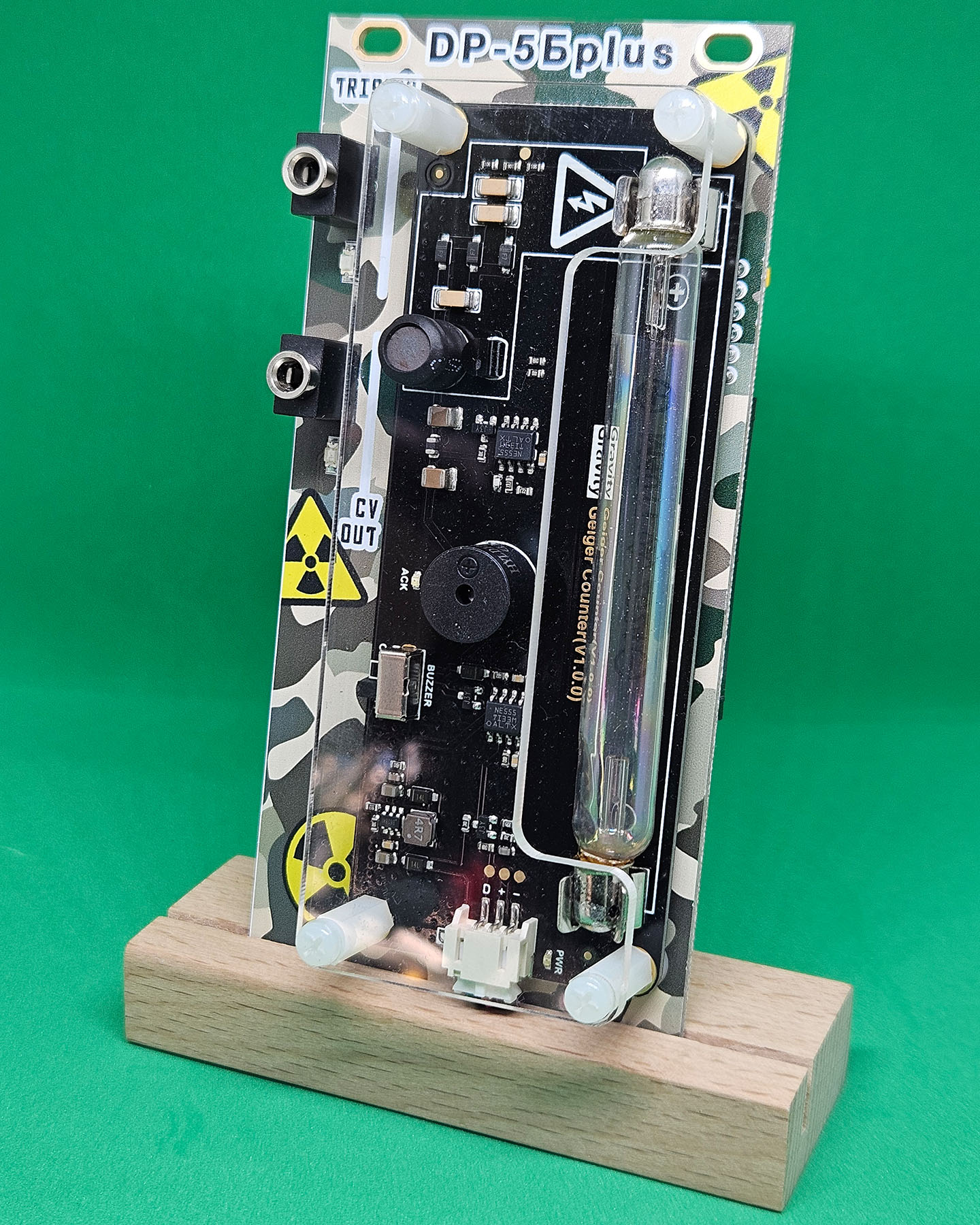

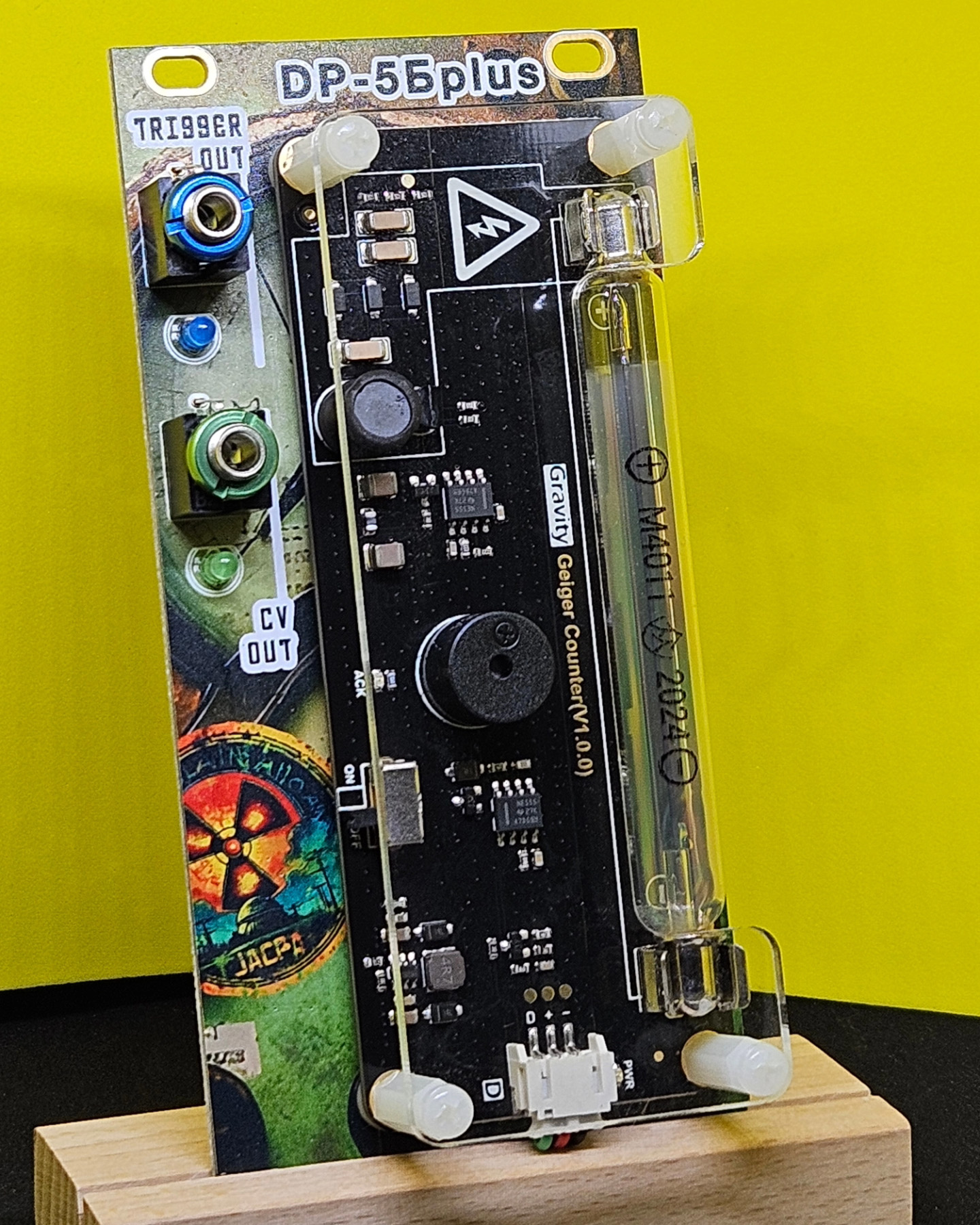

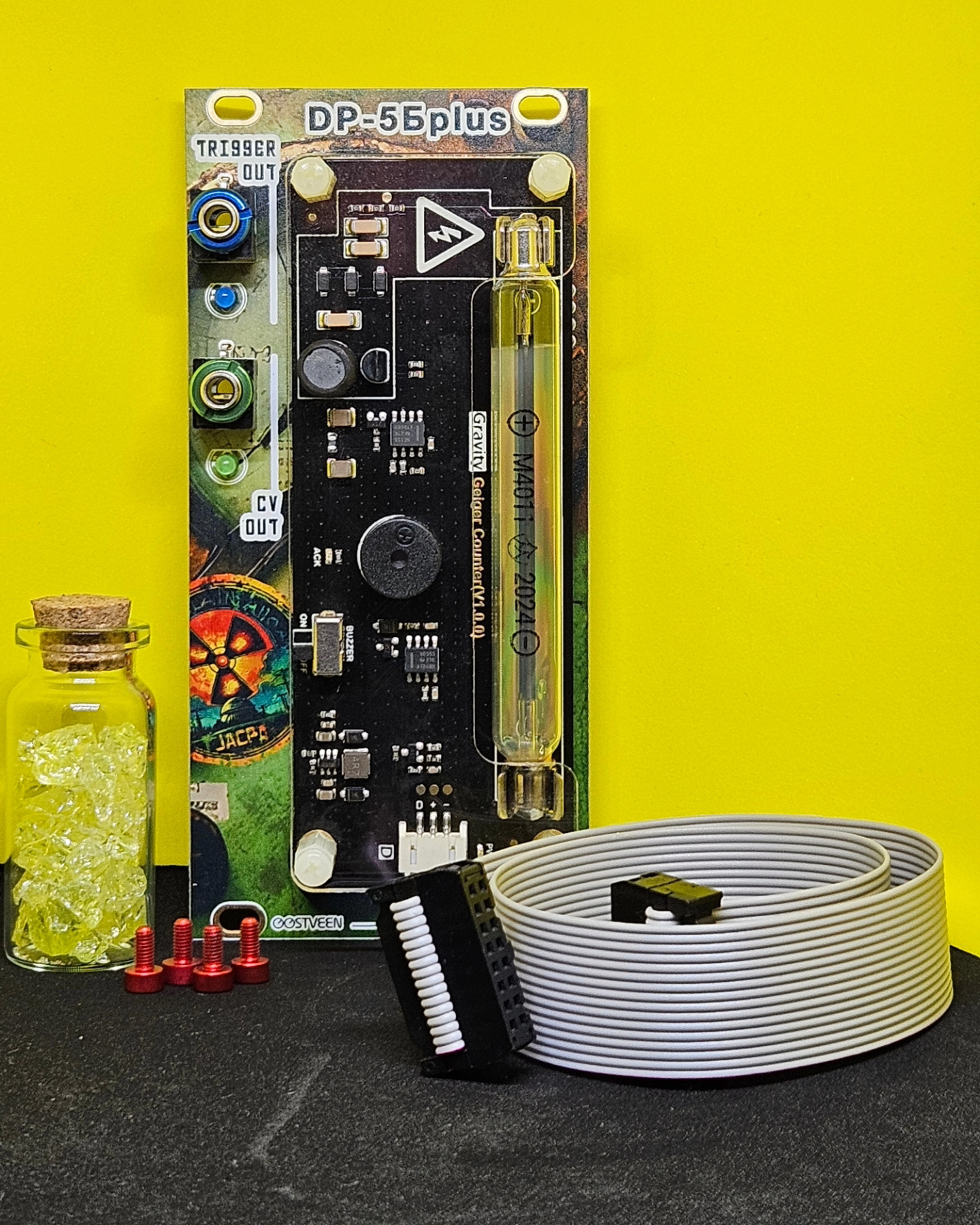

The DP-5Bplus Eurorack module takes inspiration from the DP-5B, a Cold War-era device used by the Soviet military to measure radioactivity levels. This historic meter, originally intended for assessing radiation after nuclear explosions, played a crucial role in the cleanup efforts following the Chernobyl disaster.

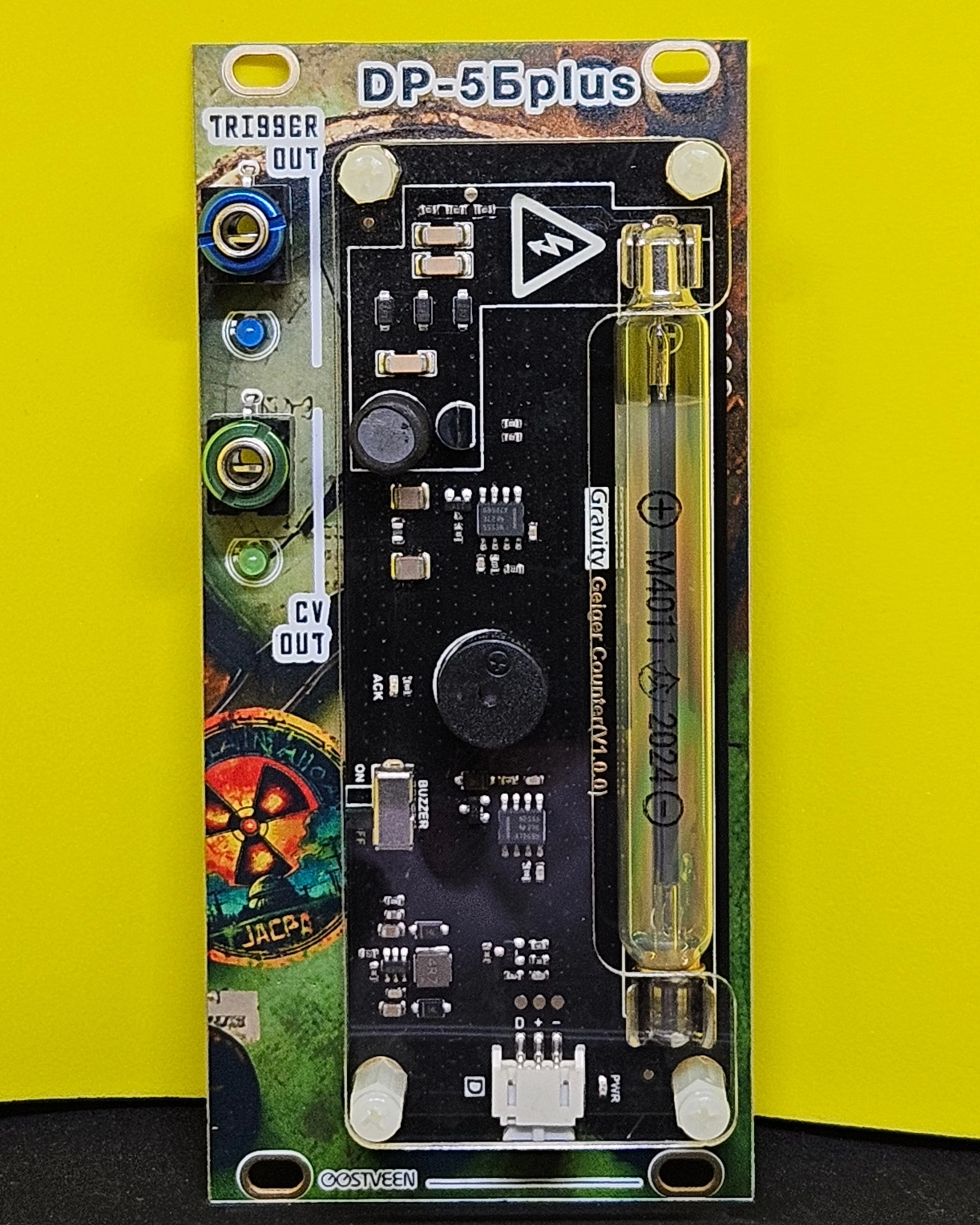

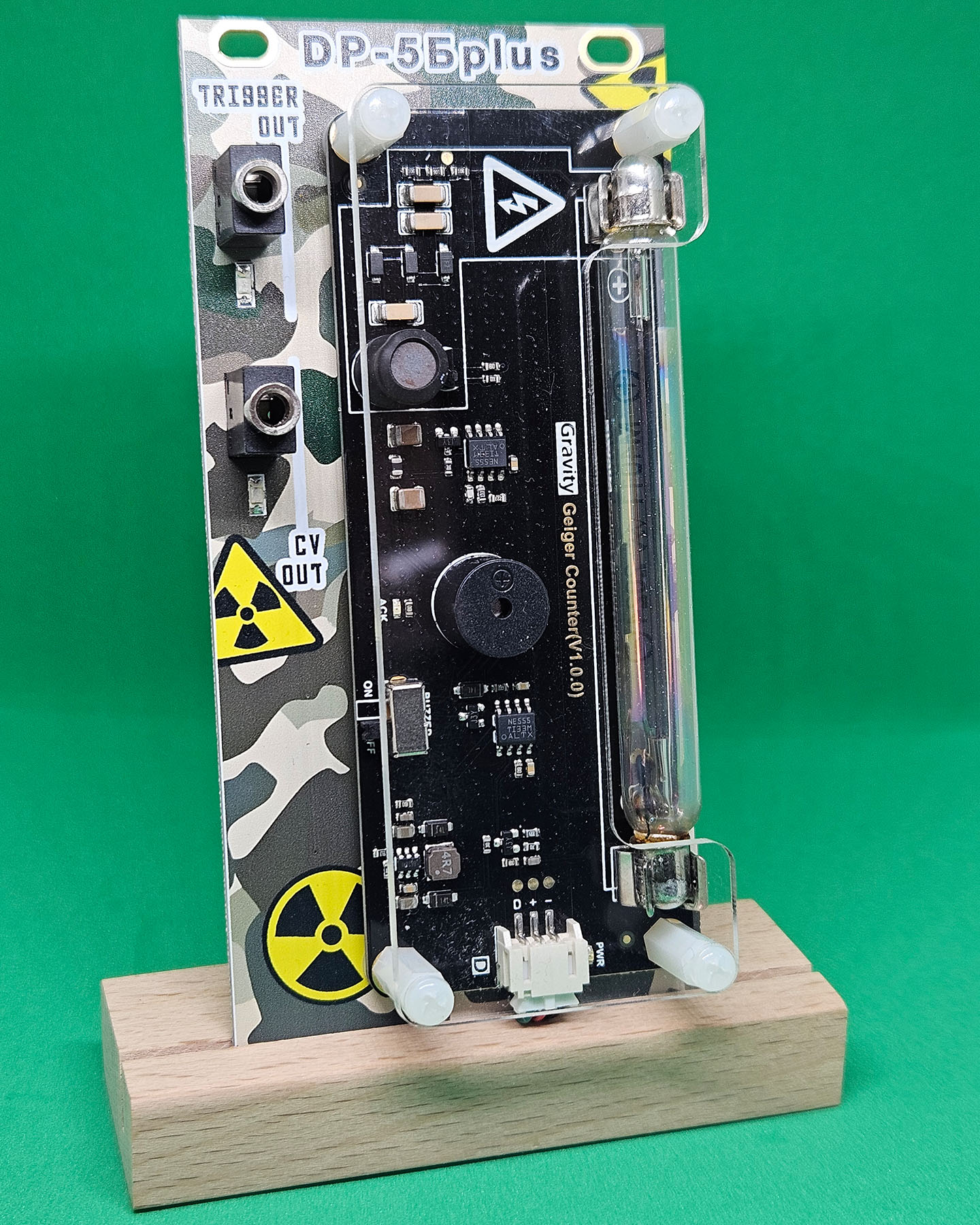

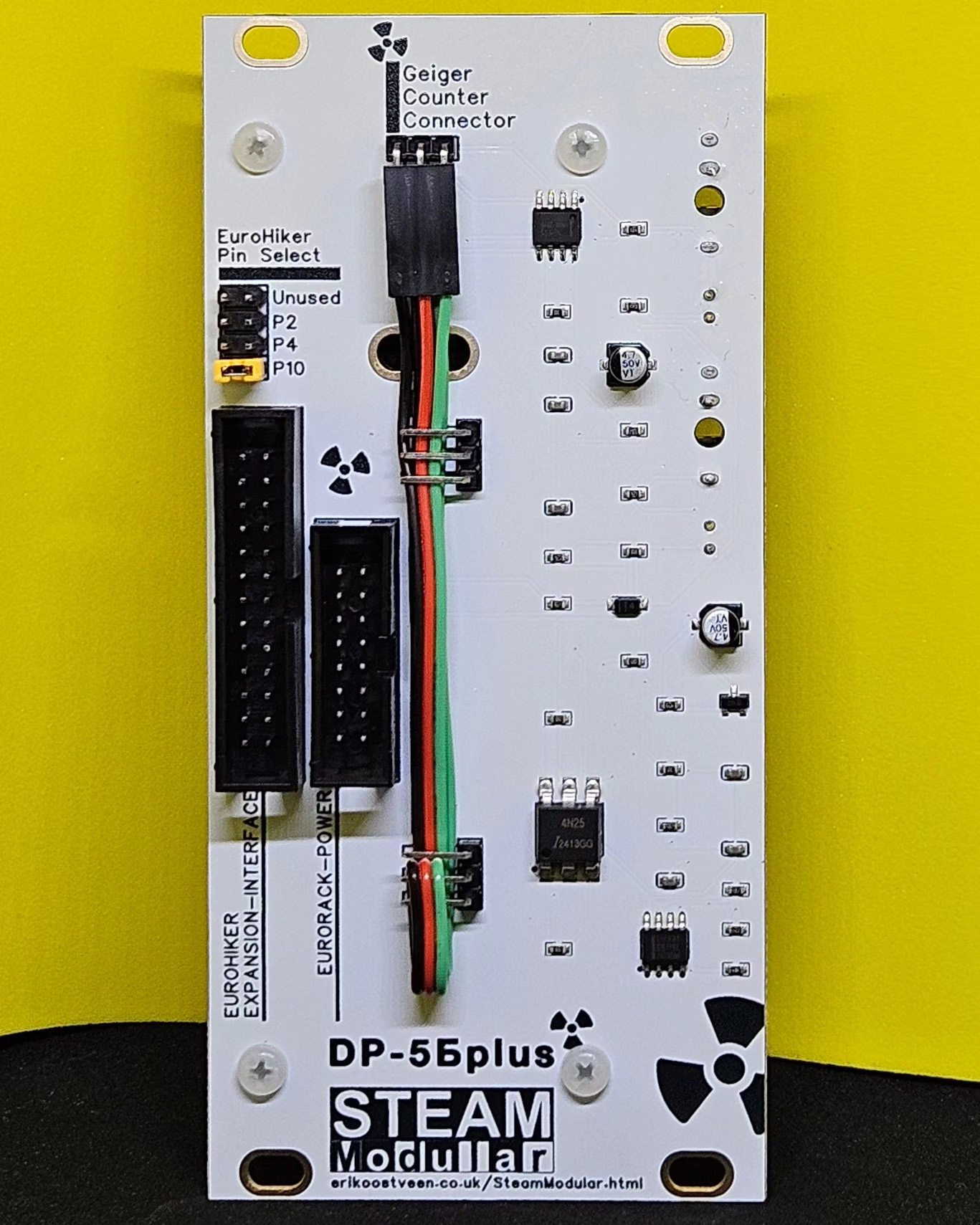

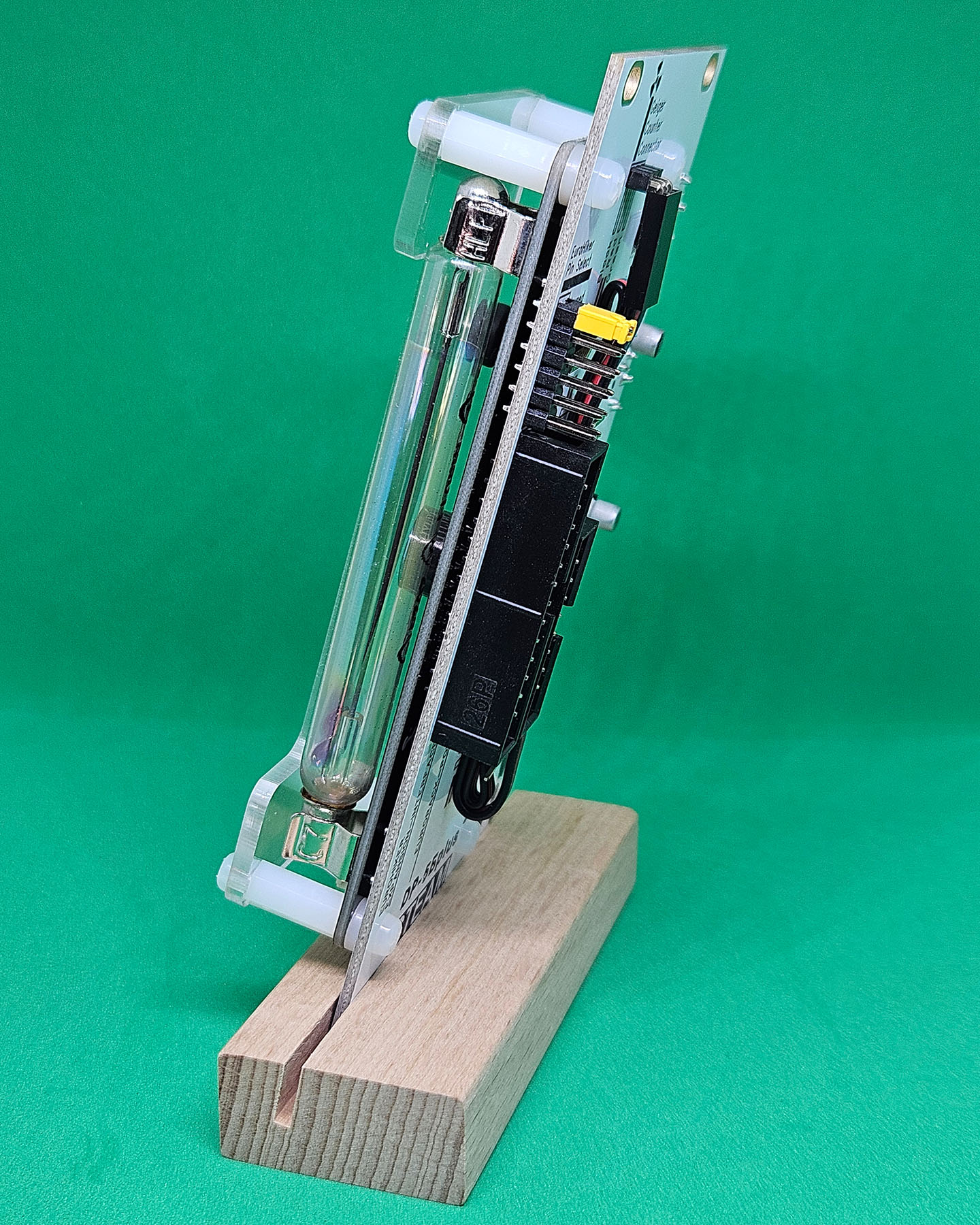

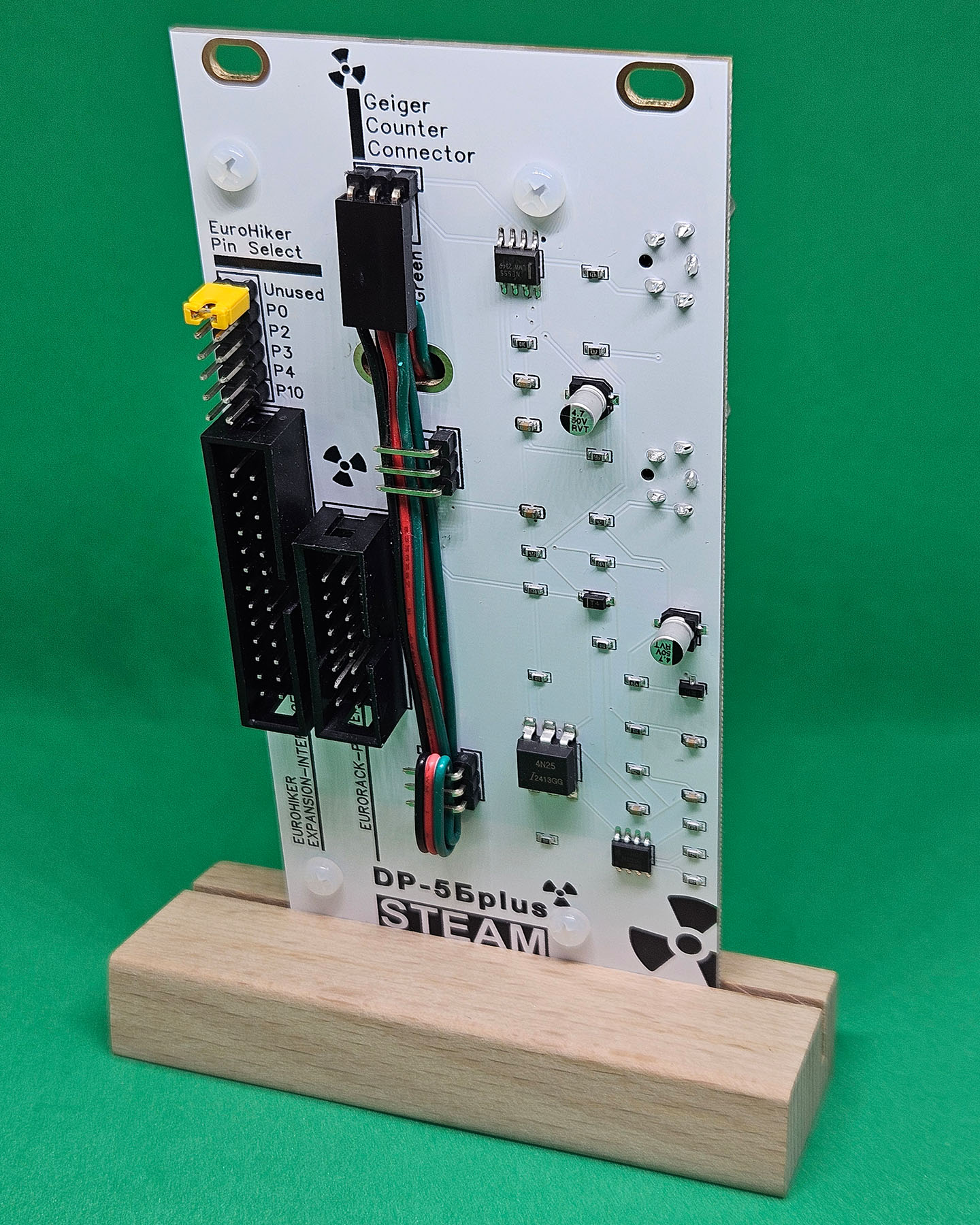

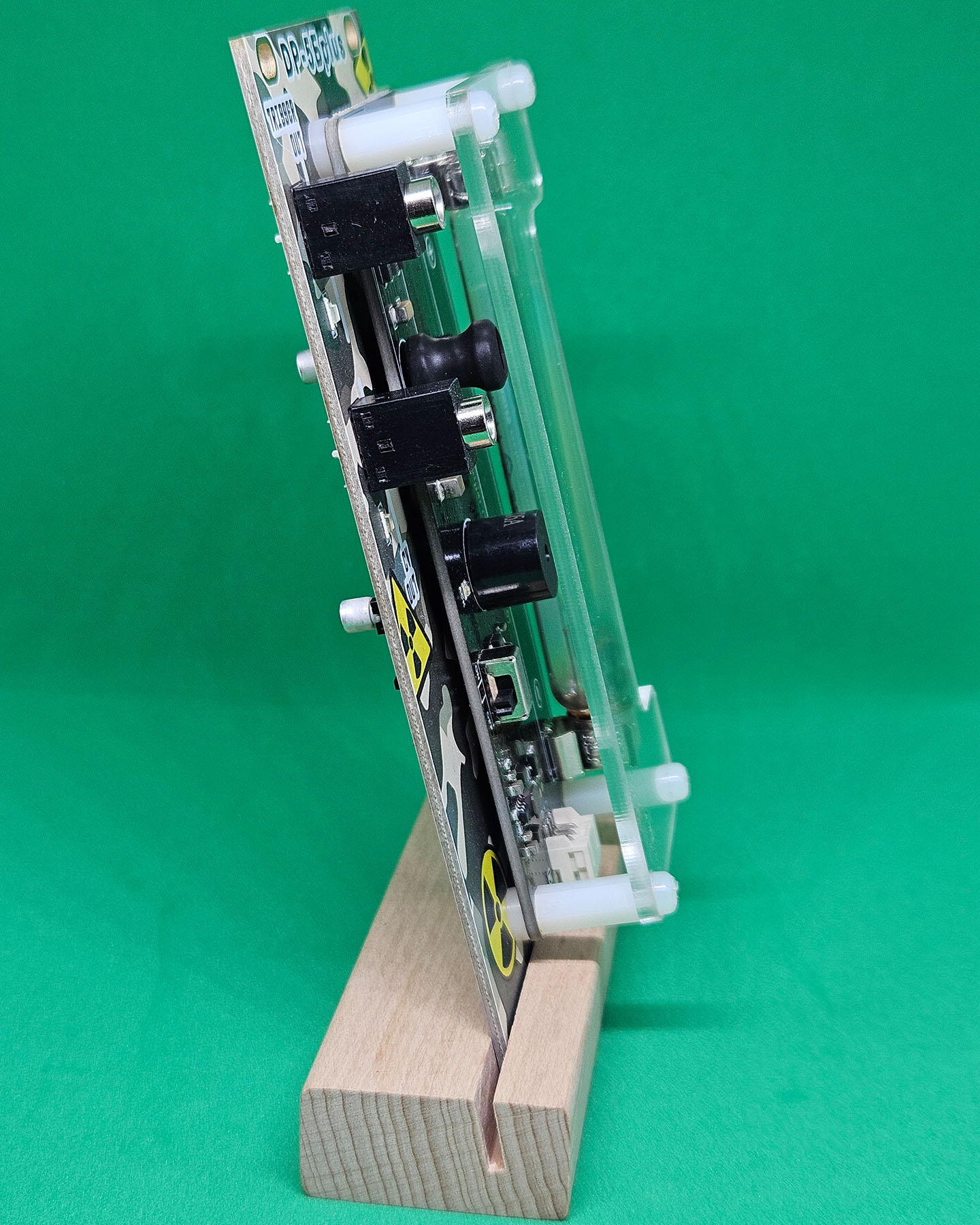

The DP-5Bplus continues the legacy of straightforward ionizing radiation detection but with a modern twist. It's incredibly compact, measuring just 3U/12HP (approximately 129mm x 60.60mm), making it a perfect fit for your Eurorack setup.
With the DP-5Bplus, you can replace pseudorandomness with the true randomness of radioactive decay, adding a unique element to your music production. Synchronize your beats to the authentic clicks of the DP-5Bplus and create some truly one-of-a-kind "Plutonium Jazz"!
Whether you're looking to infuse your compositions with natural randomness or explore the fascinating world of high-energy particles, the DP-5Bplus offers a range of exciting applications. Get ready to science the hell out of your sound with this innovative module!
Download the DP-5Bplus Visual Summary (PDF | 3Mb) here
Download the DP-5Bplus Visual Summary (Obsolete) (PDF | 3Mb) here
Module Specs
• 3U/12HP = approx. H129mm x W60.60mm
• Depth approx. 10mm
• +12V = 25mA, -12V = 0mA, +5V = 0mA
◦ What does it do?
When the Geiger Counter detects ionizing radiation like alpha particles, beta particles, or gamma rays, it triggers a 5V pulse lasting 30 milliseconds (Trigger OUT).
The CV output value increases, up to 5 Volts, as more consecutive particles are detected (CV OUT).
◦ Show us!
On Instagram
Go to my Instagram feed
On YouTube
Visit the DP-5Bplus (Geiger Counter) playlist page
