+ D-Lite: Illuminate Your Patch

Summary

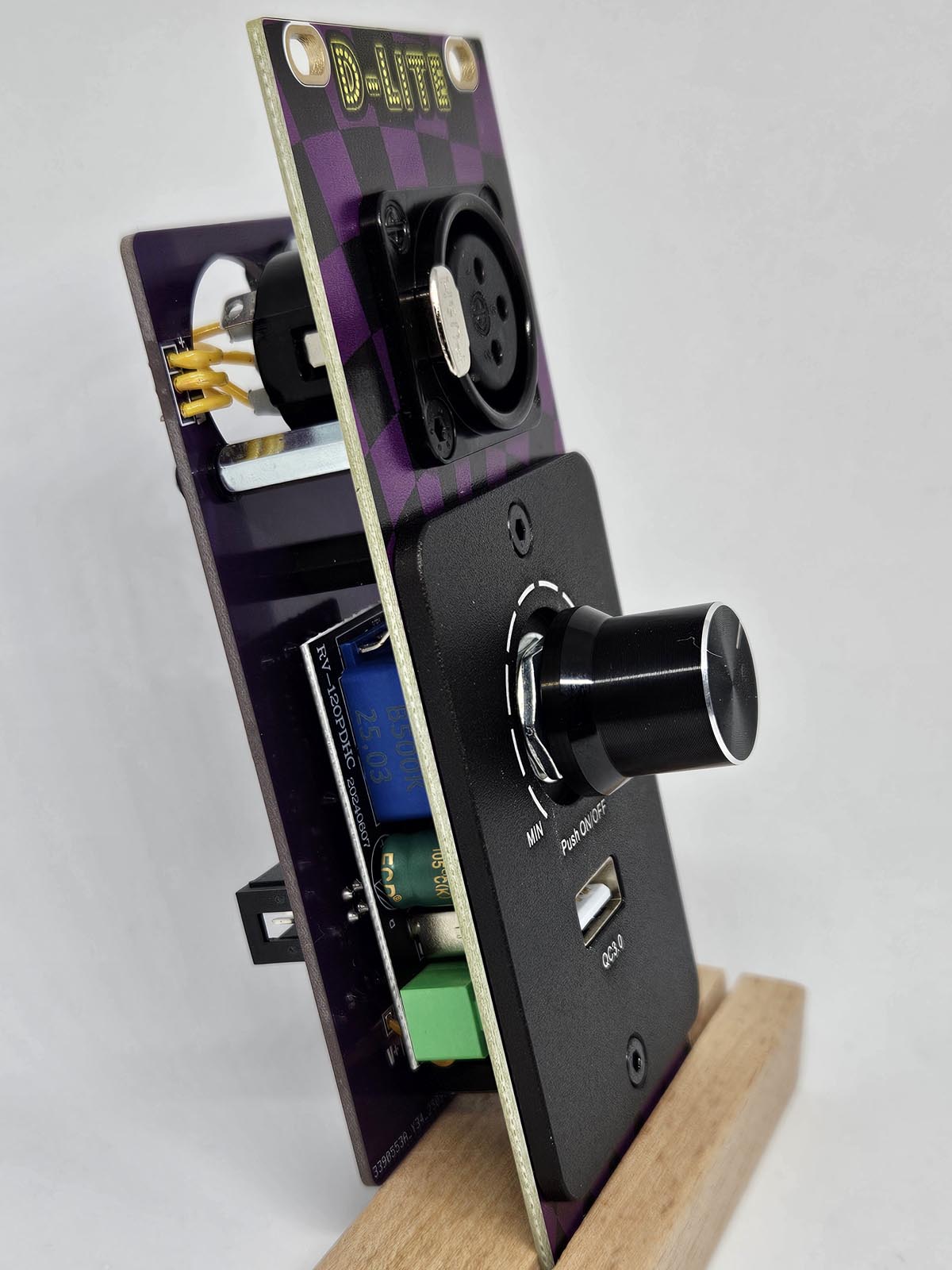

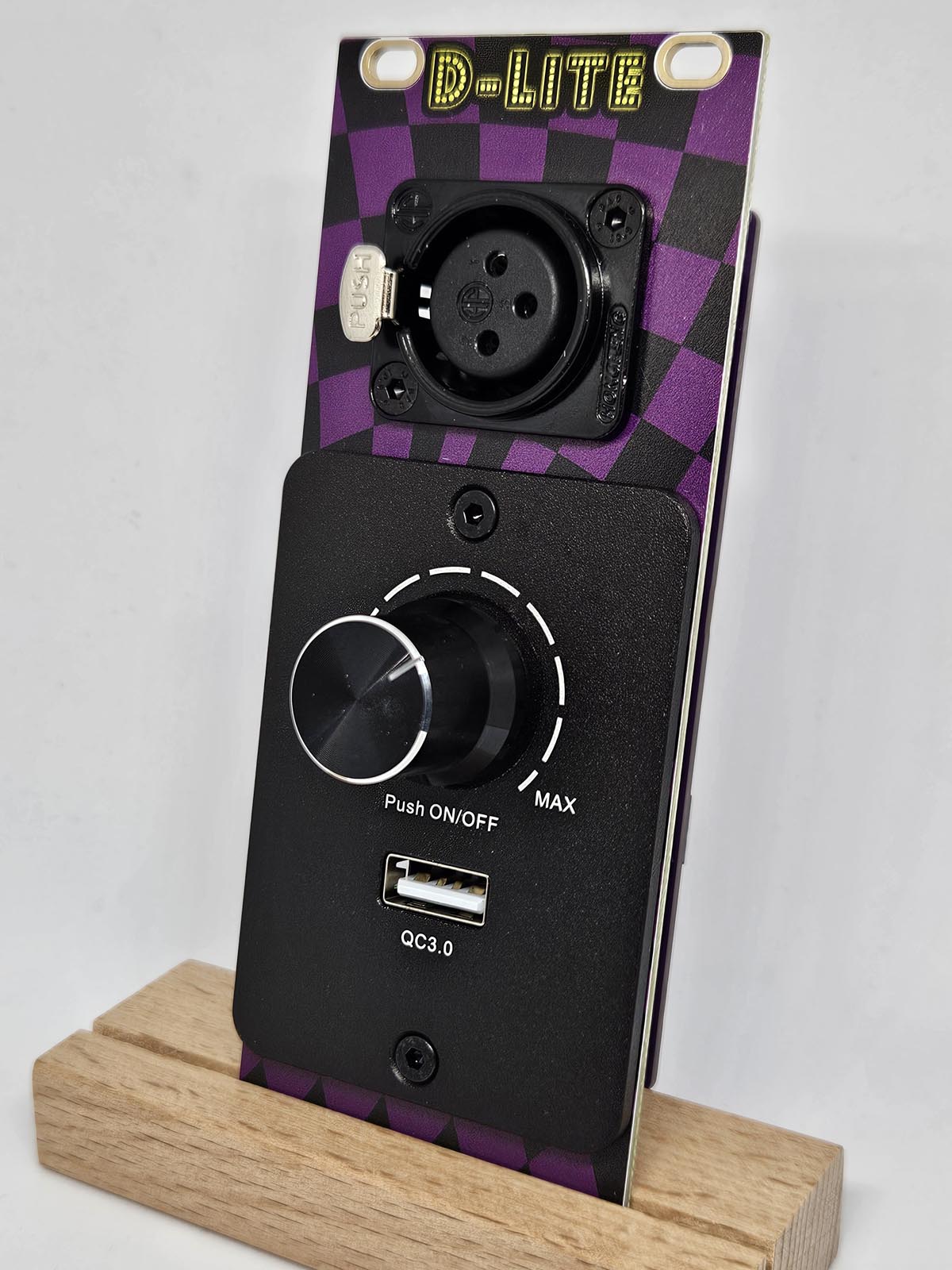

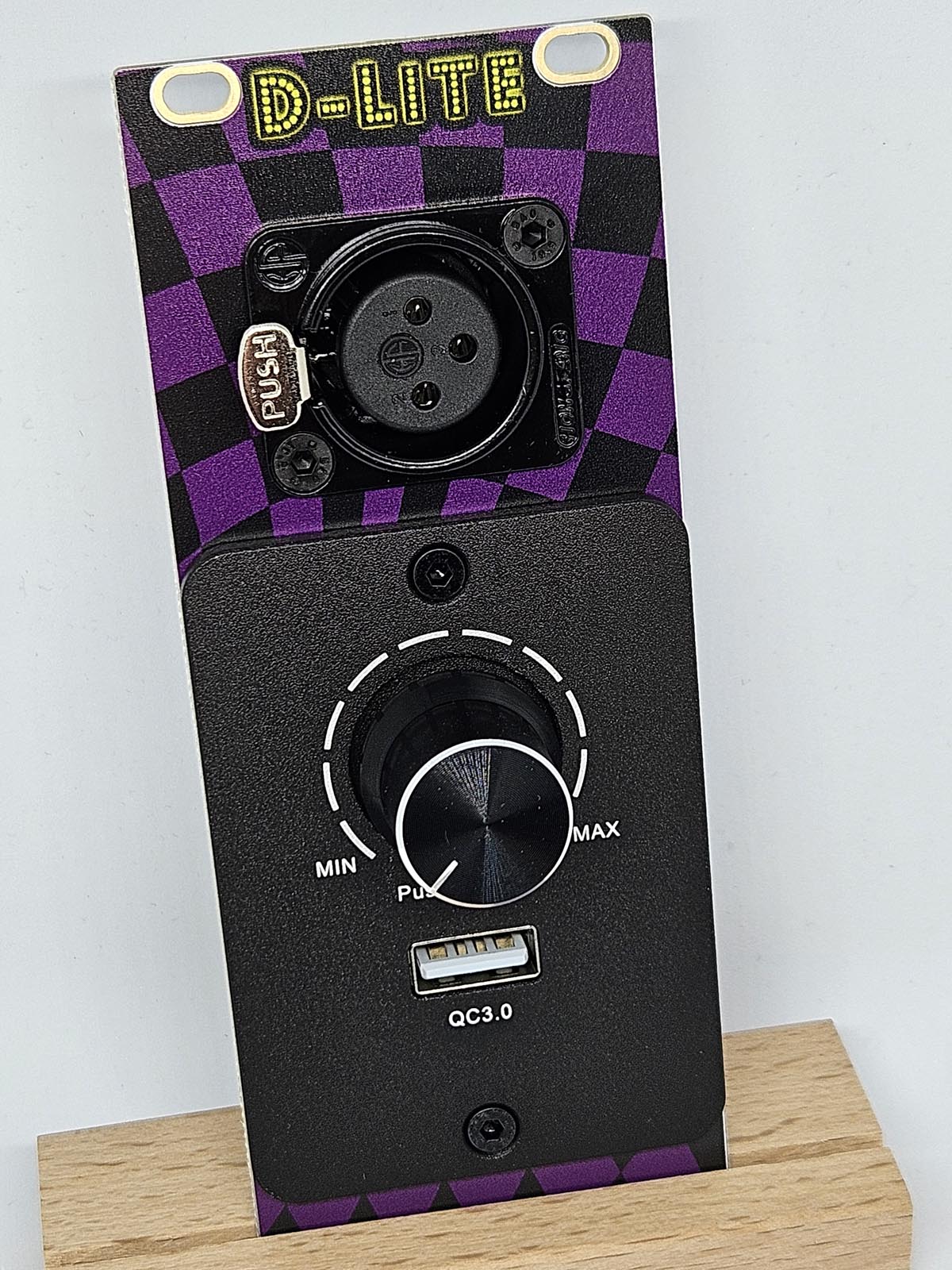

This compact 10HP utility module does exactly what
your rack’s been missing: visibility. Plug in a

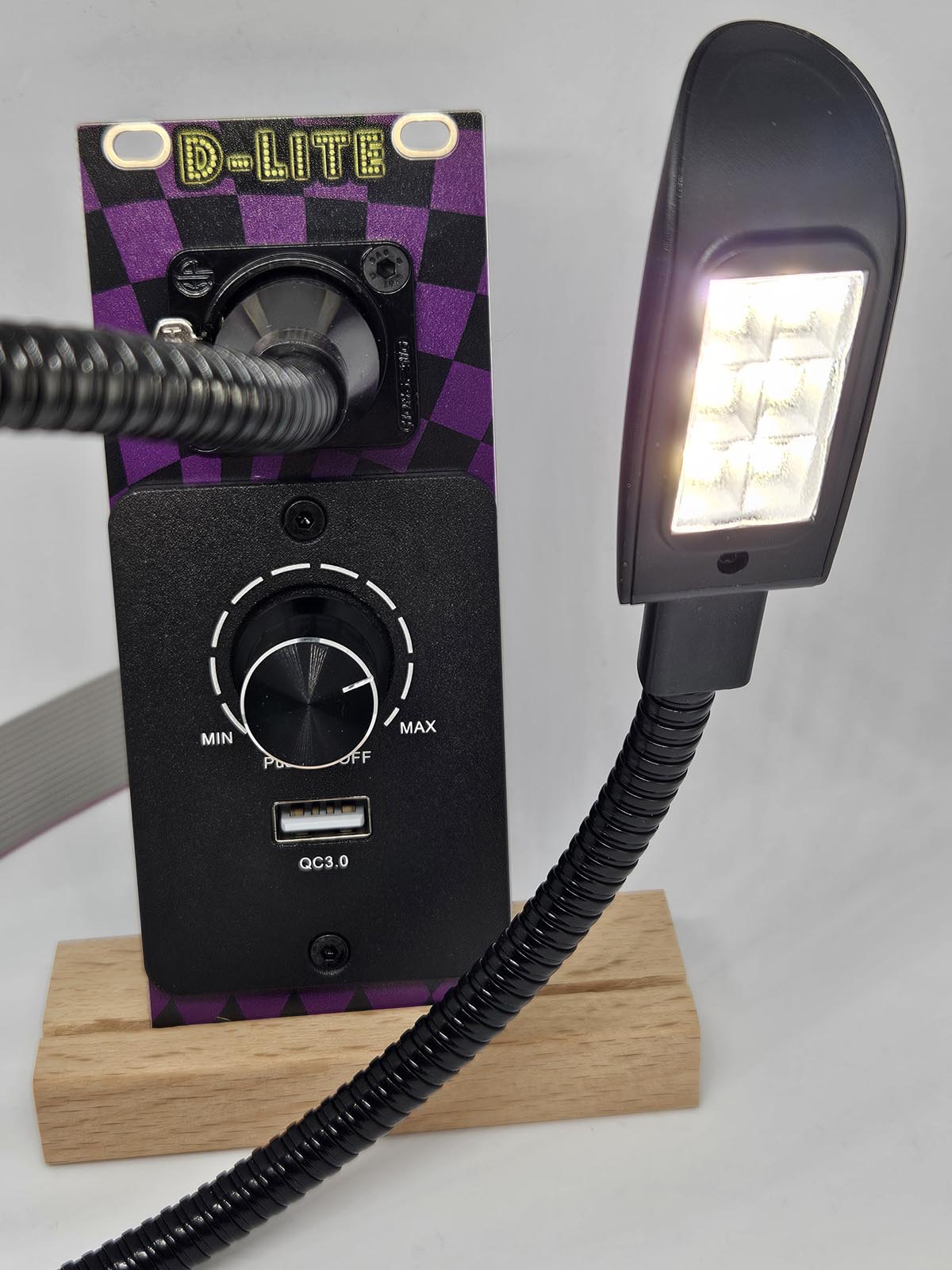

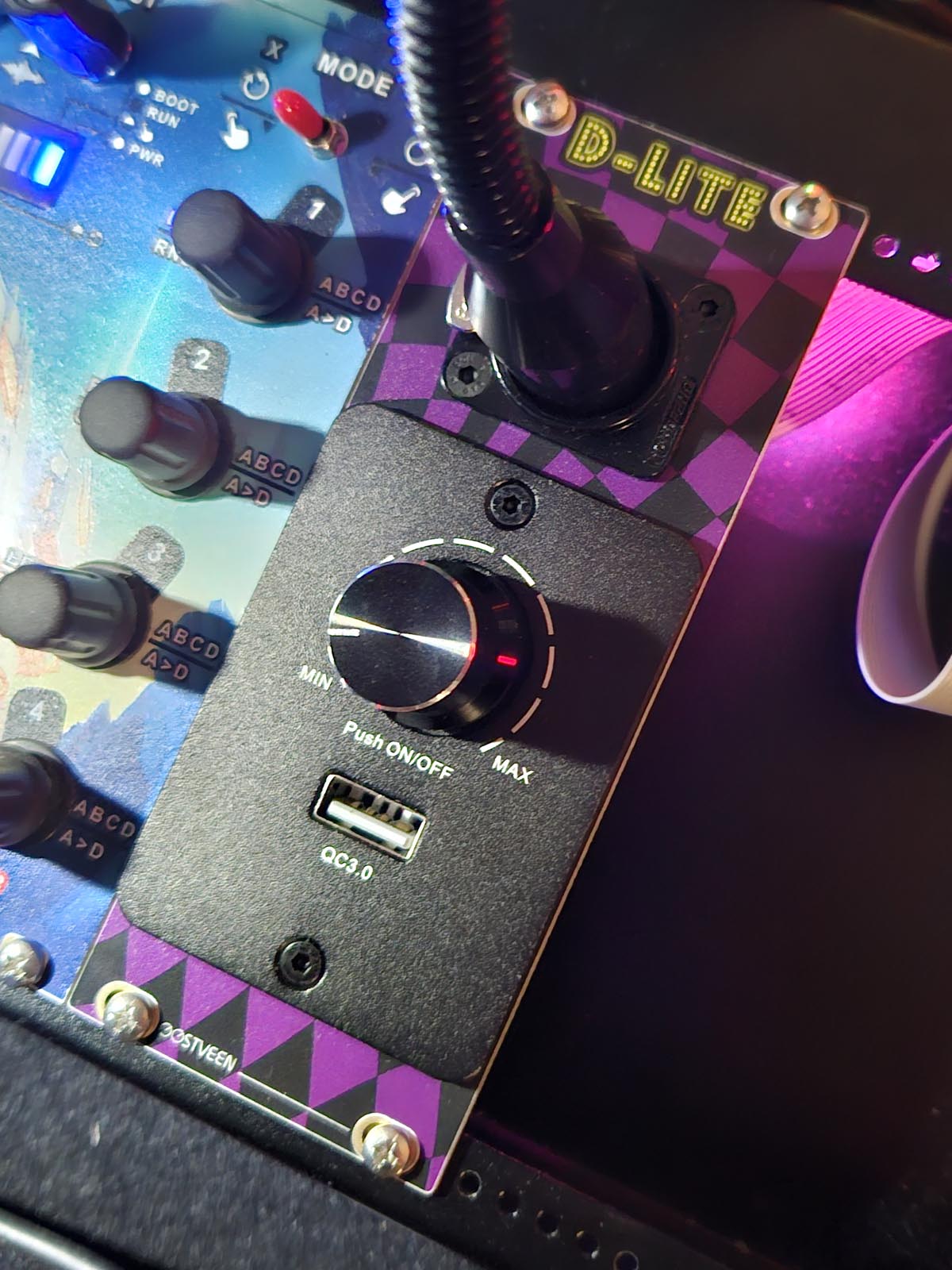

standard (12V DC) gooseneck light and dial in the

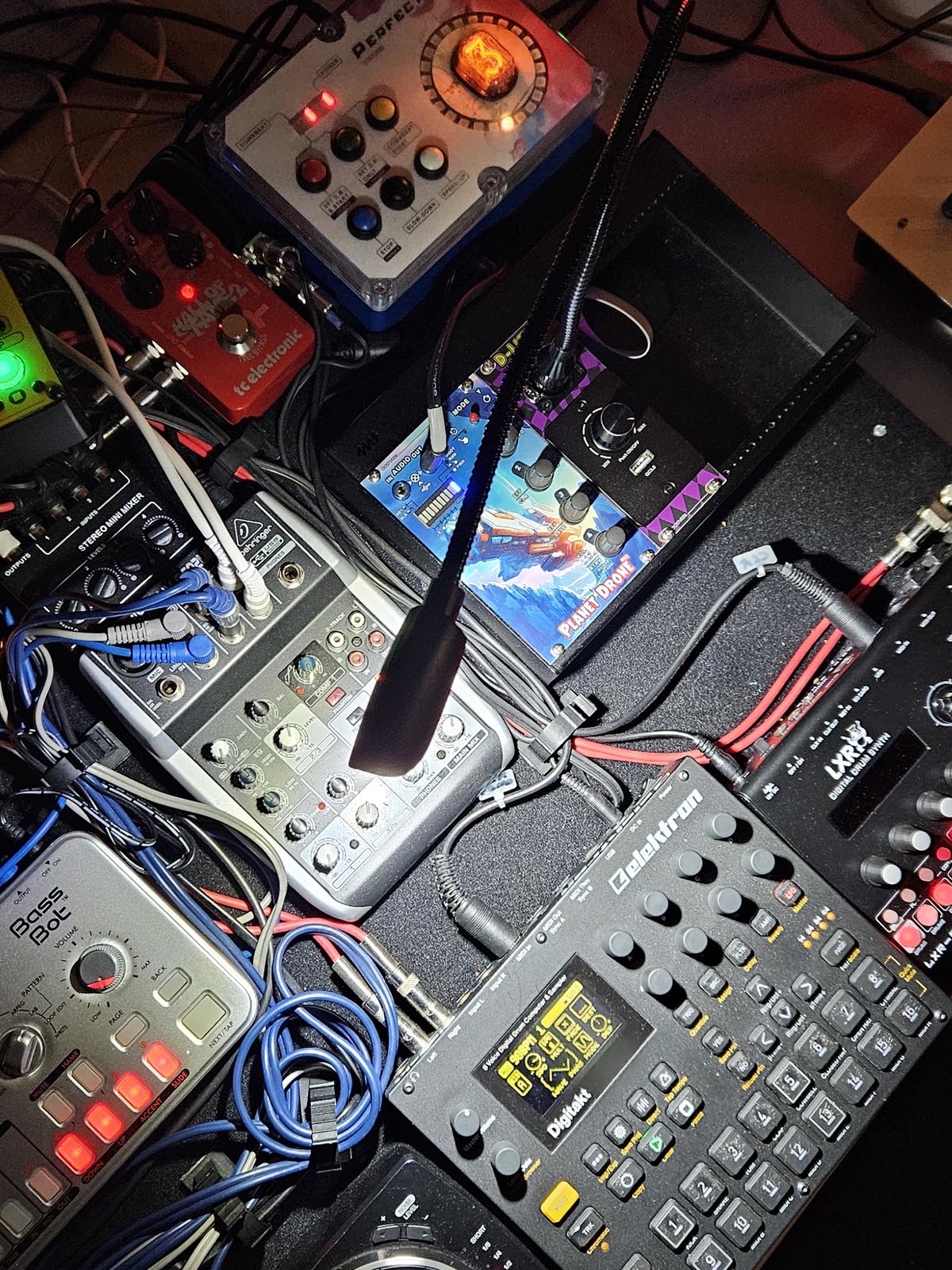

perfect brightness with the min/max knob. Ideal for
low-light performance setups or studio sessions
that stretch into the night.
Bonus: A built-in USB output lets you trickle-charge
your phone or small device right from your case.
No patching required - just plug, light, and go.

Specs

• 3U/10HP = approx. H129mm x W51mm

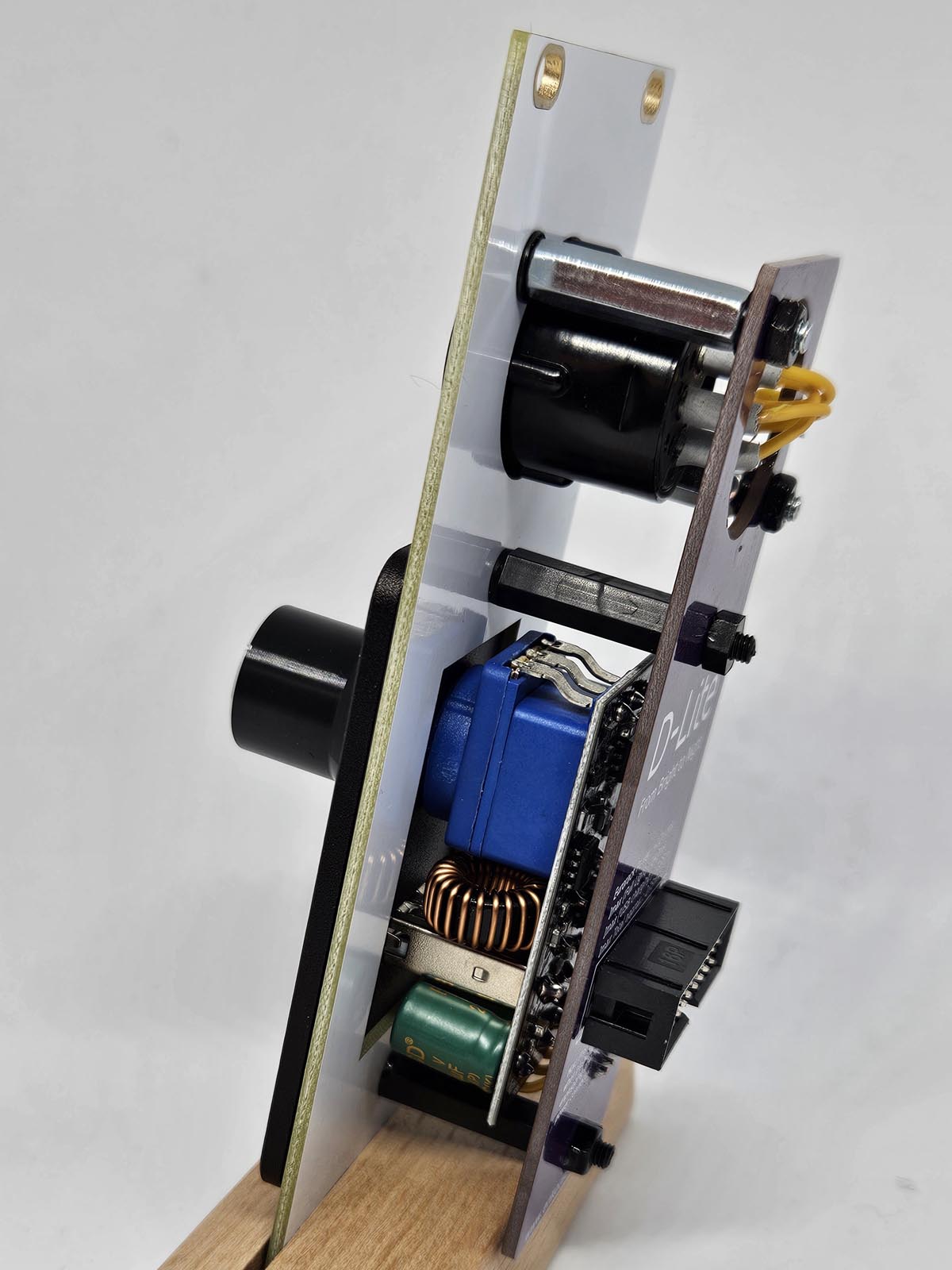

• Depth approx. 35mm
• +12V = 1275mA, -12V = 0mA, +5V = 0mA

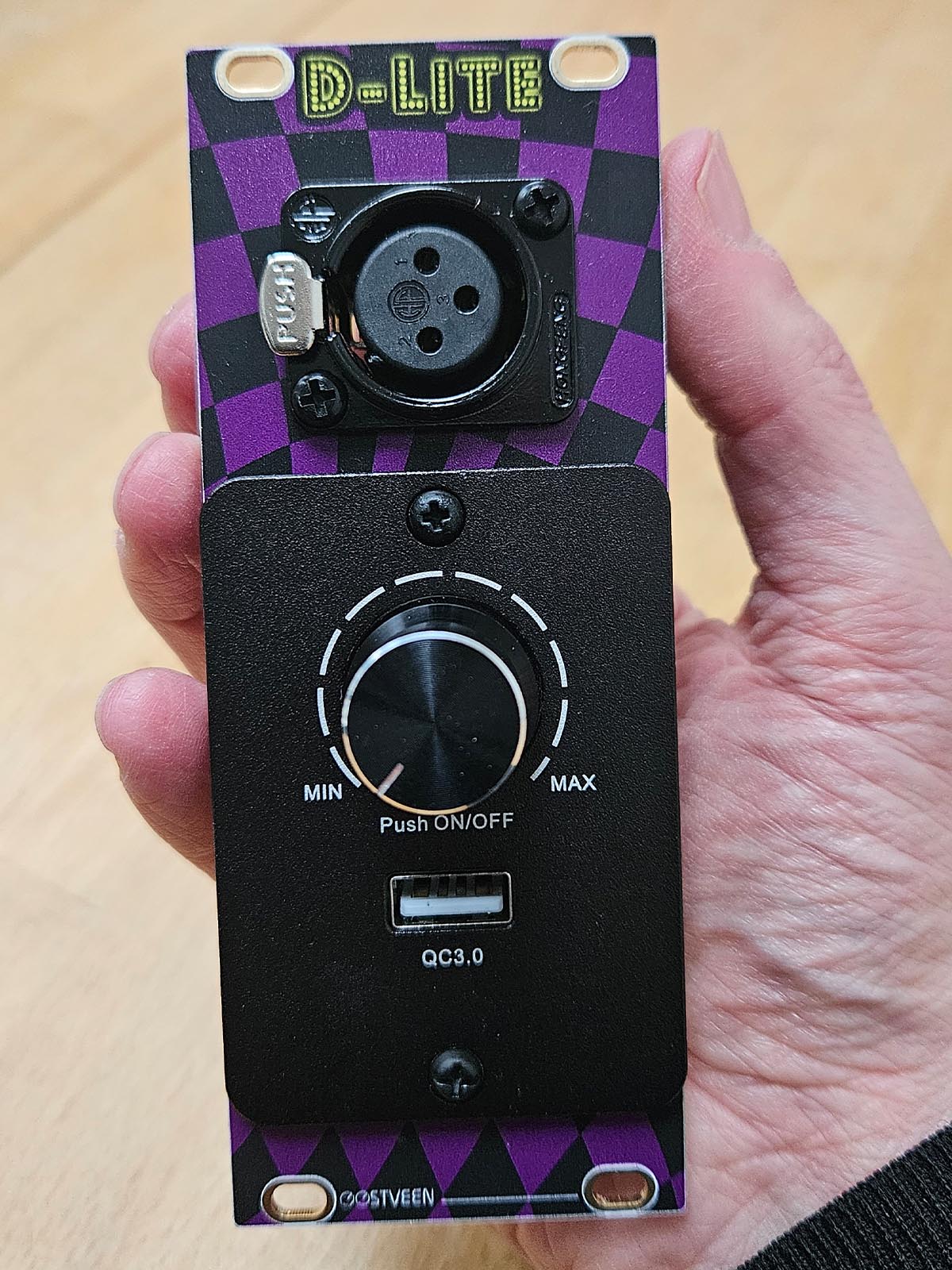

• Dial to control light brightness & module on/off

Demos

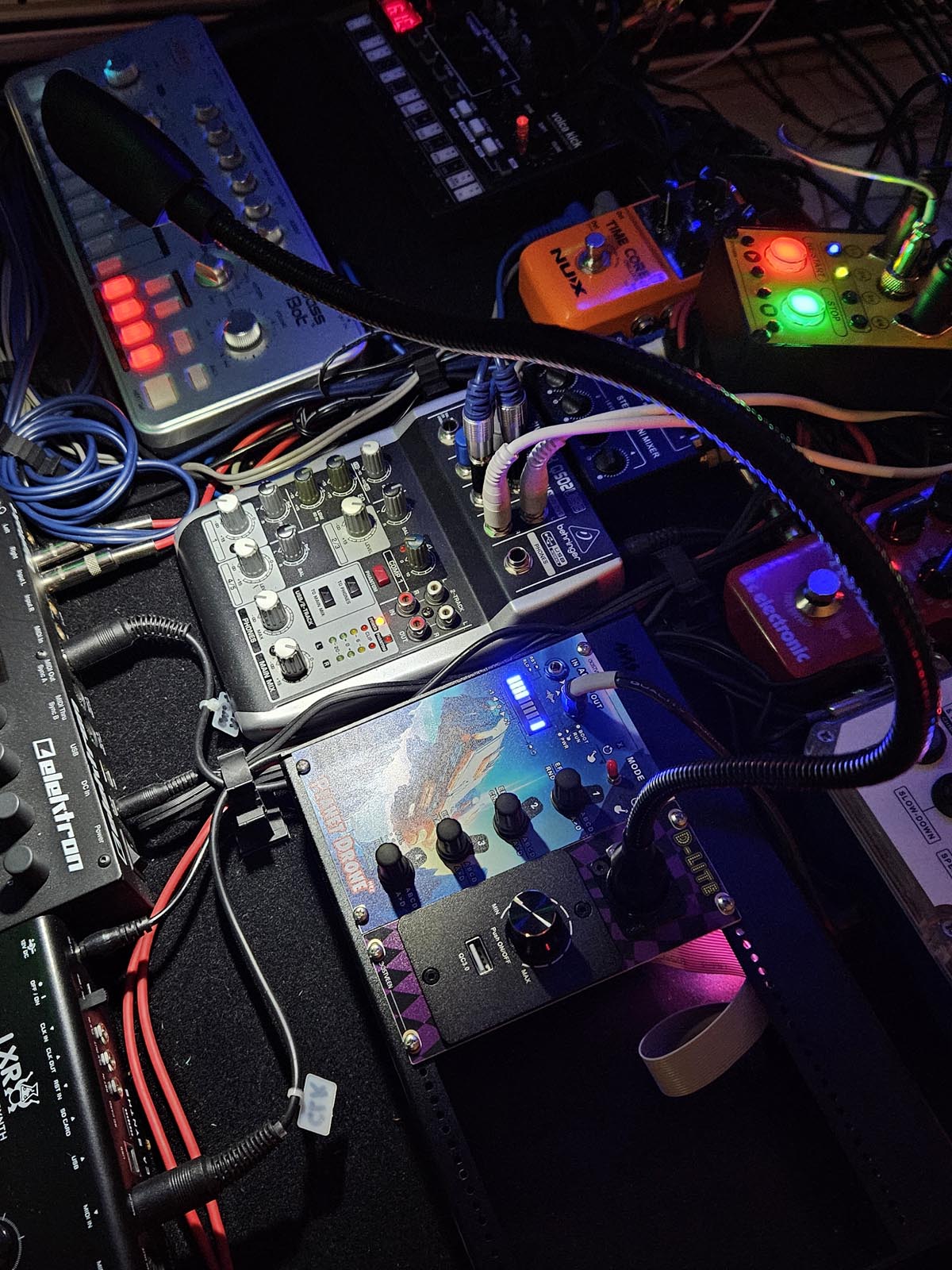

A little jam demo with the D-Lite doing its thing

Power consumption

Heads-up: This module draws up to 300mA peak,
depending on your light and USB load.
Make sure your case’s power supply can handle
the extra draw—especially if you're already
running power-hungry modules!

Important: The XLR socket is for gooseneck lights only - not microphones!
While it shares the same connector type, this is not an audio input, and connecting a mic
could result in damage. This 3-pin XLR format is a long-standing standard for microphones
but for flexible lighting too.

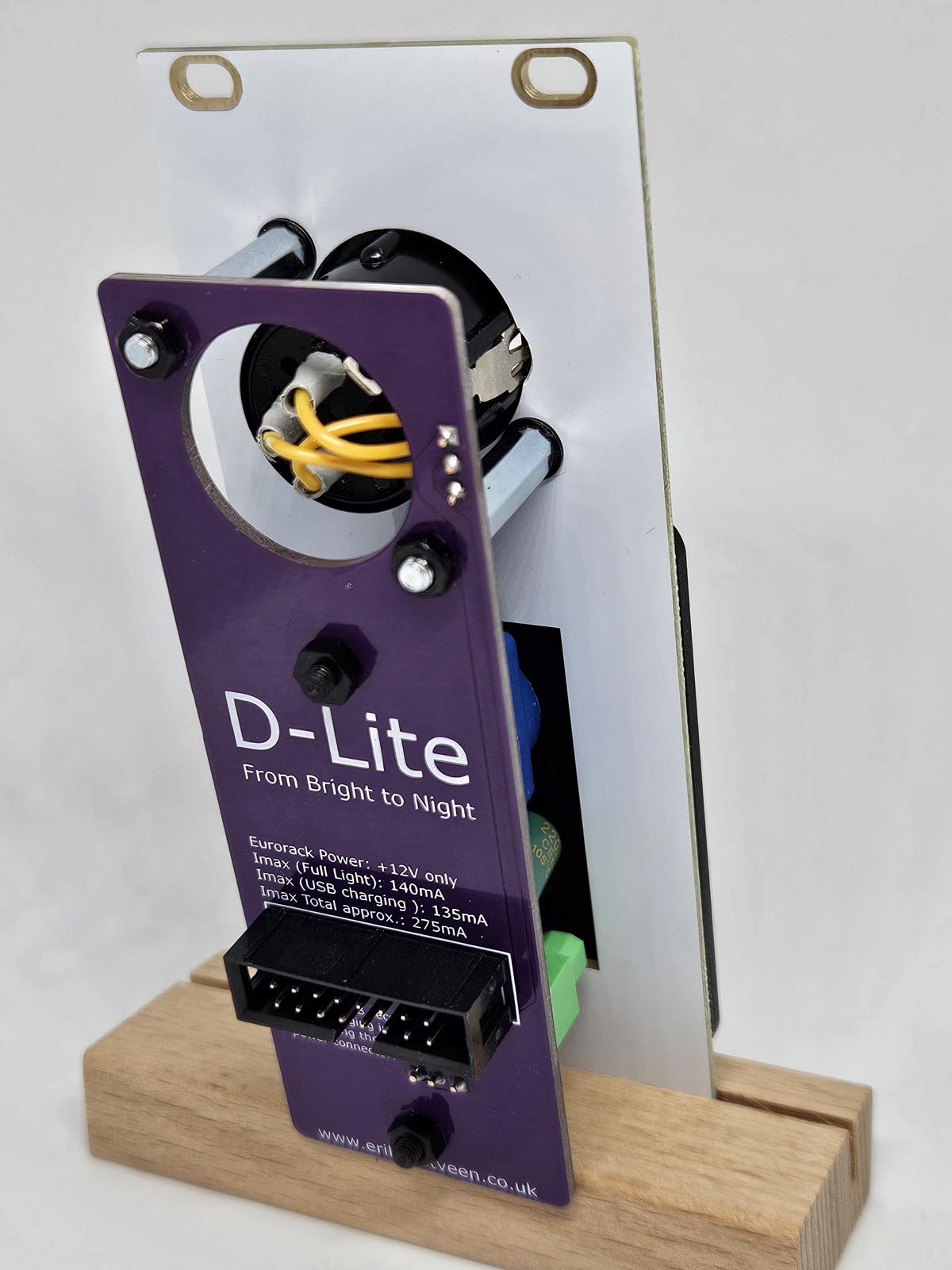

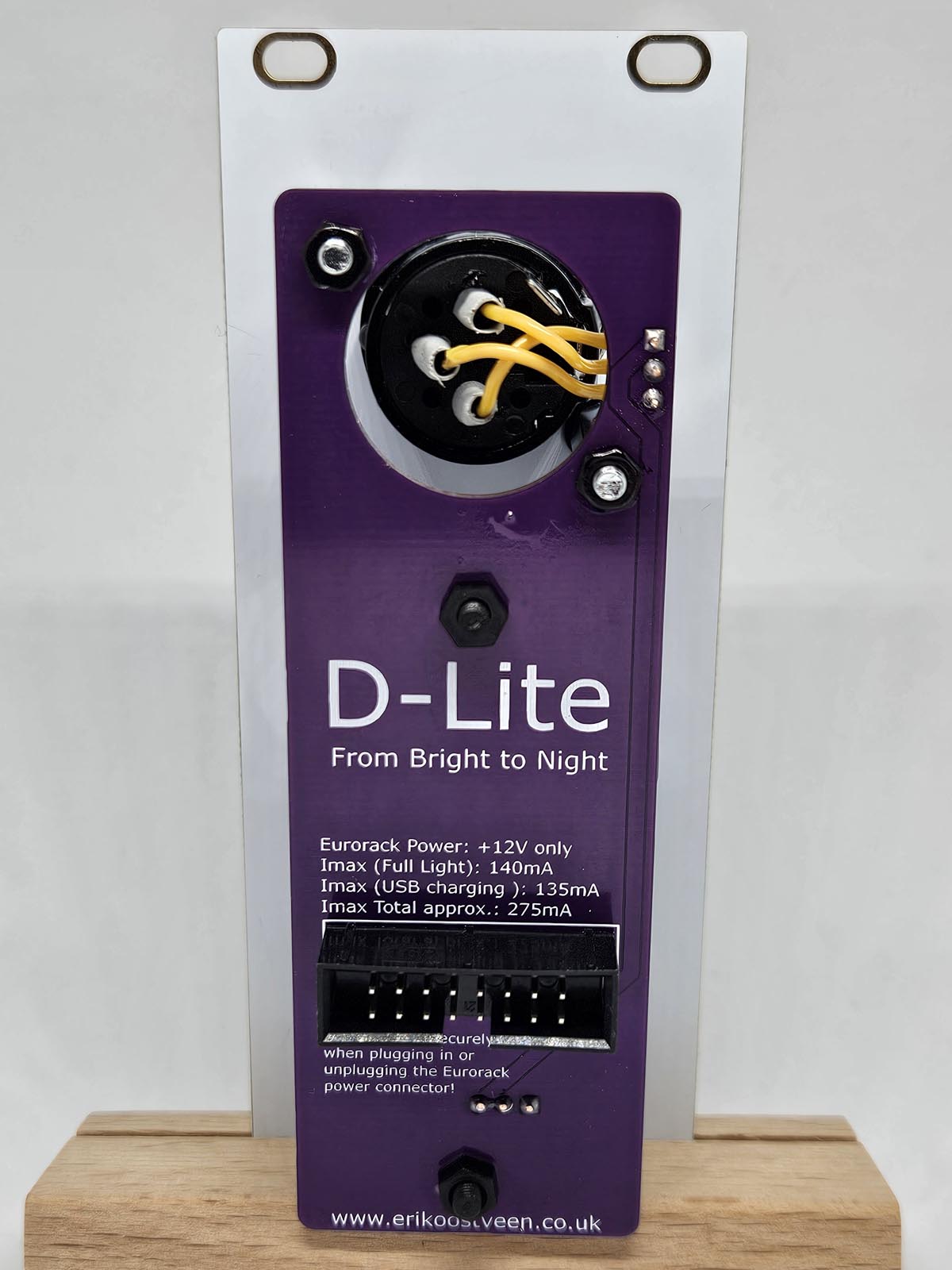

1. Eurorack Power
   This module uses the +12V bus power only
2. Imax (Full Light)
   140mA
3. Imax (USB Charging)
   135mA
4. Imax Total approx.
   275mA
